Exhaust system for BMW 1502-2002tii 2002 (1975)

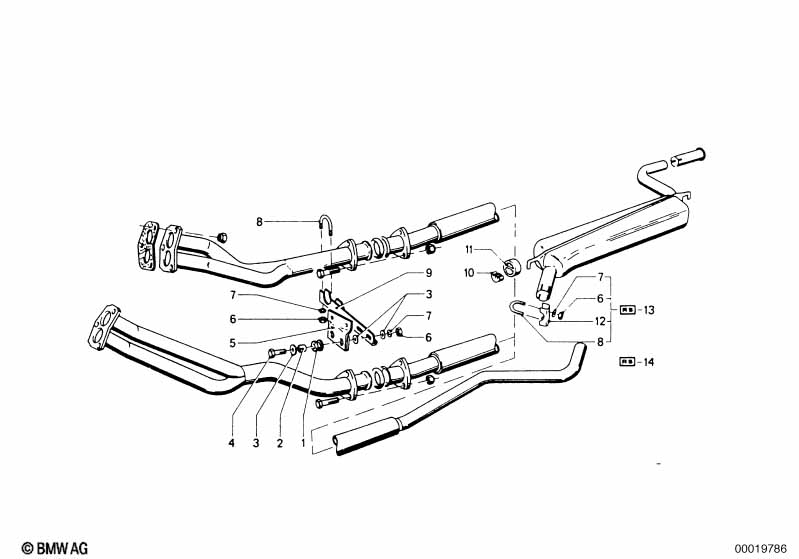

This Exhaust system technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Joint sleeve | 2 | 18211712091 | $2.86 | Shop at ECS Tuning | |||||
| 02 | Spacer sleeve | 2 | 18214690169 | $6.18 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M6X30-8.8-ZNS3 | 2 | 07119904116 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Holder | 1 | 03/1966 | 07/1977 | 18211101322 | $20.96 | Shop at ECS Tuning | |||
| 06 | Hex nut | M8-8-ZNNIV SI | 6 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 07 | Wave washer | 8,4X15-ZNS3 | 6 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Bow | M8 | 1 | 18211245377 | $3.43 | Shop at ECS Tuning | ||||
| 09 | Exhaust support | 1 | 03/1966 | 07/1977 | 18211245382 | $5.03 | Shop at ECS Tuning | |||
| 10 | Base | 2 | 03/1966 | 07/1977 | 18214490157 | $3.18 | Shop at ECS Tuning | |||
| 11 | Rubber Ring | 2 | 03/1966 | 07/1977 | 18211105638 | $4.23 | ENDED | Shop at ECS Tuning | ||
| 11 | Rubber Ring | 2 | 03/1966 | 07/1977 | 18211105635 | $4.83 | Shop at ECS Tuning | |||
| 12 | Bow | 8MM | 1 | 03/1966 | 07/1977 | 18211245376 | $3.62 | Shop at ECS Tuning | ||
| 14 | Set mounting parts | 1 | 03/1966 | 07/1977 | 18211245391 | ENDED | Shop at ECS Tuning |
