Exhaust pipe/muffler for BMW 2.5CS-3.0CSL 3.0CS

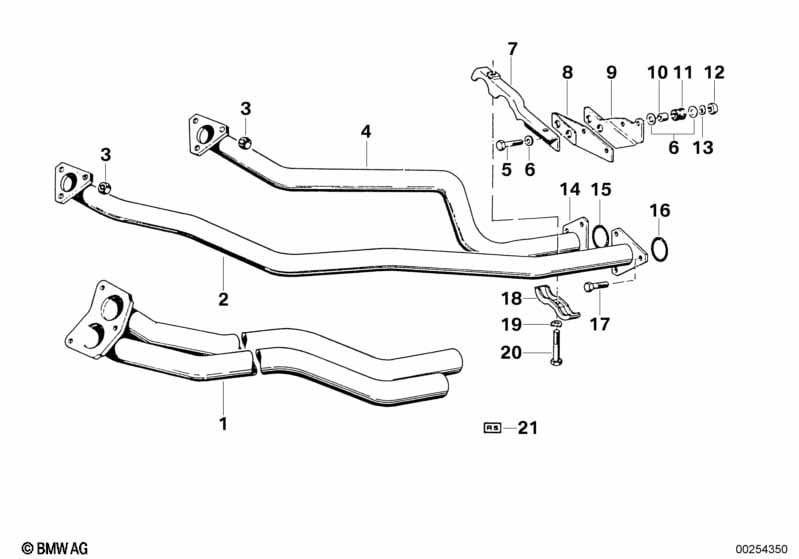

This Exhaust pipe/muffler technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Exhaust pipe front | ZYL.1-3 | 1 | 18111246262 | $127.67 | Shop at ECS Tuning | ||||
| 03 | Hex nut | M10 | 6 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 04 | Exhaust pipe | ZYL.4-6 | 1 | 18111246255 | $127.67 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M6X30-8.8-ZNS3 | 2 | 12/1968 | 11/1975 | 07119904116 | $0.38 | Shop at ECS Tuning | ||
| 06 | Washer | 6 | 12/1968 | 11/1975 | 18214690192 | $0.20 | Shop at ECS Tuning | |||
| 07 | Exhaust support | 1 | 12/1968 | 11/1975 | 18211245177 | $23.45 | Shop at ECS Tuning | |||
| 08 | Carrier | 1 | 12/1968 | 11/1975 | 18211102741 | $31.26 | Shop at ECS Tuning | |||
| 10 | Spacer sleeve | 2 | 12/1968 | 11/1975 | 18214690169 | $6.18 | Shop at ECS Tuning | |||
| 11 | Joint sleeve | 2 | 12/1968 | 11/1975 | 18211712091 | $2.86 | Shop at ECS Tuning | |||
| 12 | Hex nut | M6-8-ZNNIV SI | 2 | 12/1968 | 11/1975 | 07119905543 | $0.38 | Shop at ECS Tuning | ||
| 14 | Flange | 1 | 18111102366 | $33.77 | Shop at ECS Tuning | |||||
| 15 | Gasket ring asbesto-free | 1 | 18119067822 | $7.54 | Shop at ECS Tuning | |||||
| 16 | Conical ring | 42MM | 1 | 18111245489 | $5.47 | Shop at ECS Tuning | ||||
| 17 | Hex bolt | M8X45-8.8-ZNS3 | 6 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| 18 | Pipe clamp | 1 | 12/1968 | 11/1975 | 18211246379 | $5.37 | Shop at ECS Tuning | |||
| 19 | Wave washer | 8,4X15-ZNS3 | 1 | 12/1968 | 11/1975 | 07119904115 | $0.09 | Shop at ECS Tuning | ||
| 20 | Hexagon bolt | M8X65 | 1 | 12/1968 | 11/1975 | 07119903018 | Shop at ECS Tuning | |||
| 20 | Hex bolt | M8X65 | 1 | 12/1968 | 11/1975 | 41117006311 | $6.28 | Shop at ECS Tuning | ||
| 21 | Set mounting parts | 1 | 04/1971 | 11/1975 | 18211245386 | ENDED | Shop at ECS Tuning |
