Exhaust system for BMW 2500-3.3Li 3.0S (1973)

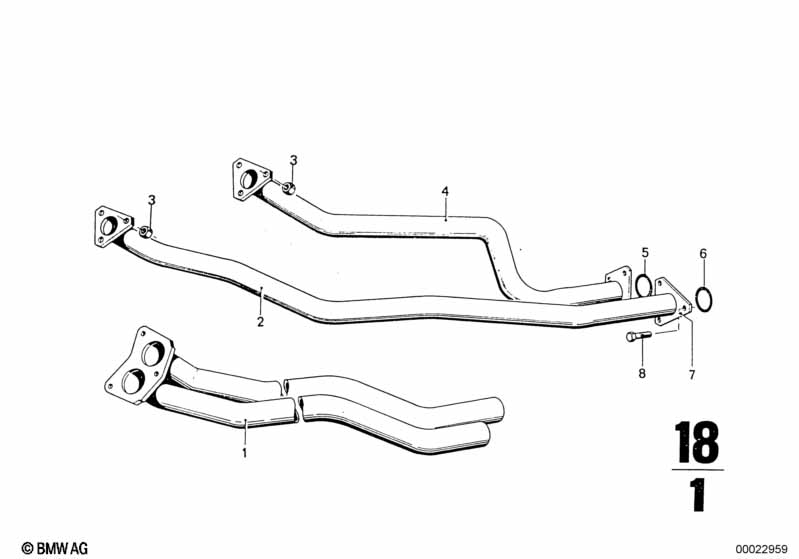

This Exhaust system technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Exhaust pipe front | ZYL.1-3 | 1 | 08/1968 | 02/1977 | 18111246262 | $127.67 | Shop at ECS Tuning | ||
| 03 | Hex nut | M10 | 6 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 04 | Exhaust pipe | ZYL.4-6 | 1 | 08/1968 | 02/1977 | 18111246255 | $127.67 | Shop at ECS Tuning | ||
| 05 | Gasket ring asbesto-free | 1 | 08/1968 | 02/1977 | 18119067822 | $7.54 | Shop at ECS Tuning | |||
| 06 | Conical ring | 42MM | 1 | 08/1968 | 02/1977 | 18111245489 | $5.47 | Shop at ECS Tuning | ||
| 07 | Flange | 1 | 08/1968 | 02/1977 | 18111102366 | $33.77 | Shop at ECS Tuning | |||
| 08 | Hex bolt | M8X45-8.8-ZNS3 | 6 | 08/1968 | 02/1977 | 07119902955 | $0.62 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0S Exhaust system?
- This technical diagram illustrates the Exhaust system within the Exhaust system group for the 2500-3.3Li 3.0S produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Exhaust pipe front (Part #18111246262).
- Which models use the hardware listed in this Exhaust system?
- The hardware and components featured in the Exhaust system are specific to the 2500-3.3Li 3.0S produced during 1973. These technical specifications ensure that parts like the Exhaust pipe front (18111246262) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Exhaust system assembly?
- Each item in the Exhaust system corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0S, you can identify the Exhaust pipe front by locating its position on the schematic, which then links to the official BMW part number 18111246262 for the Exhaust system section.
