Exhaust system for BMW 2500-3.3Li 2500 (1973)

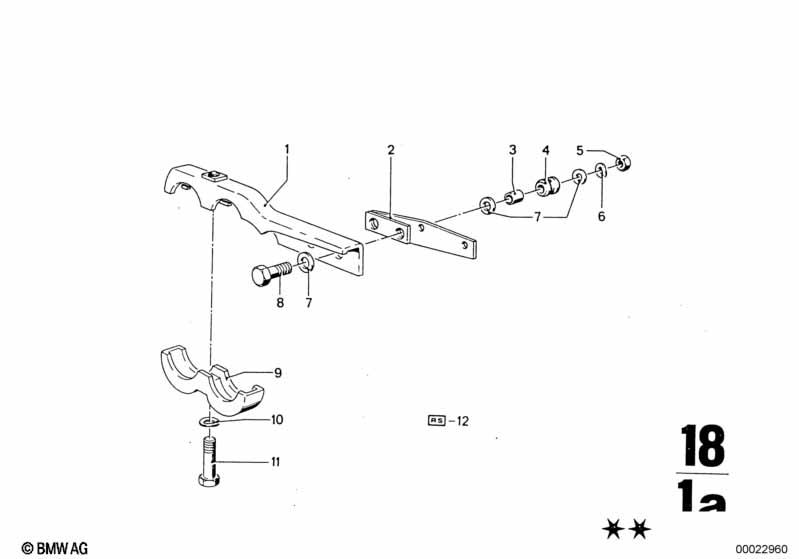

This Exhaust system technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exhaust support | 1 | 18211245177 | $23.45 | Shop at ECS Tuning | |||||
| 02 | Carrier | 1 | 18211102741 | $31.26 | Shop at ECS Tuning | |||||
| 03 | Spacer sleeve | 2 | 18214690169 | $6.18 | Shop at ECS Tuning | |||||
| 04 | Joint sleeve | 2 | 18211712091 | $2.86 | Shop at ECS Tuning | |||||
| 05 | Hex nut | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Washer | 6 | 18214690192 | $0.20 | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M6X30-8.8-ZNS3 | 2 | 07119904116 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Pipe clamp | 1 | 18211246379 | $5.37 | Shop at ECS Tuning | |||||
| 10 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 11 | Hexagon bolt | M8X65 | 1 | 02/2000 | 07119903018 | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M8X65 | 1 | 41117006311 | $6.28 | Shop at ECS Tuning | ||||
| 12 | Set mounting parts | 1 | 08/1968 | 02/1977 | 18211245387 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
