Muffler system for BMW 2500-3.3Li 3.0S (1973)

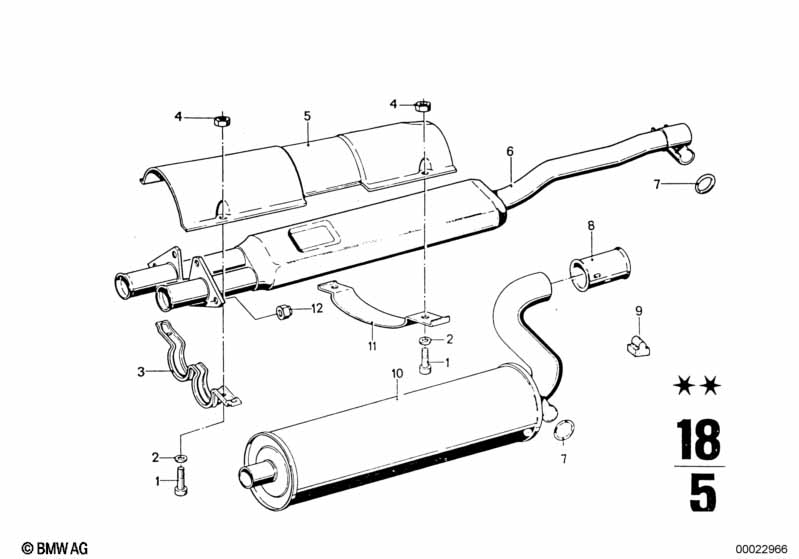

This Muffler system technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fillister-head screw | M8X25-8.8 ZN | 4 | 08/1968 | 02/1977 | 07119919978 | $0.30 | ENDED | Shop at ECS Tuning | |
| 01 | ISA screw | M8X25-10.9-ZNS3 | 4 | 08/1968 | 02/1977 | 07129904477 | $2.00 | Shop at ECS Tuning | ||
| 02 | Washer | 8,4 | 4 | 08/1968 | 02/1977 | 07119931656 | $0.11 | ENDED | Shop at ECS Tuning | |
| 04 | Self-locking hex nut | M8-8-ZNNI SI | 4 | 08/1968 | 02/1977 | 07129906196 | $1.60 | Shop at ECS Tuning | ||
| 04 | Self-locking hex nut | M8 | 4 | 08/1968 | 02/1977 | 07129922714 | $0.17 | ENDED | Shop at ECS Tuning | |
| 05 | Heat resistant plate | 1 | 08/1968 | 02/1977 | 18121245565 | $67.17 | ENDED | Shop at ECS Tuning | ||
| 06 | Front muffler | 1 | 05/1971 | 07/1974 | 18121245342 | $558.73 | ENDED | Shop at ECS Tuning | ||
| 07 | Rubber Ring | 4 | 18211245114 | Shop at ECS Tuning | ||||||
| 08 | Tailpipe tip | 55 MM | 1 | 08/1968 | 02/1977 | 18111102632 | $19.71 | Shop at ECS Tuning | ||
| 09 | Stop buffer | 1 | 18211101877 | $1.95 | ENDED | Shop at ECS Tuning | ||||
| 10 | Rear muffler | 1 | 05/1971 | 02/1977 | 18121245356 | $422.71 | ENDED | Shop at ECS Tuning | ||
| 11 | Holder | 4 | 08/1968 | 02/1977 | 18121245566 | $11.72 | Shop at ECS Tuning | |||
| 12 | Hex nut | M8 SW12 | 6 | 11621744323 | $0.85 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
