Exhaust system for BMW R 27 -66 R27 (1961)

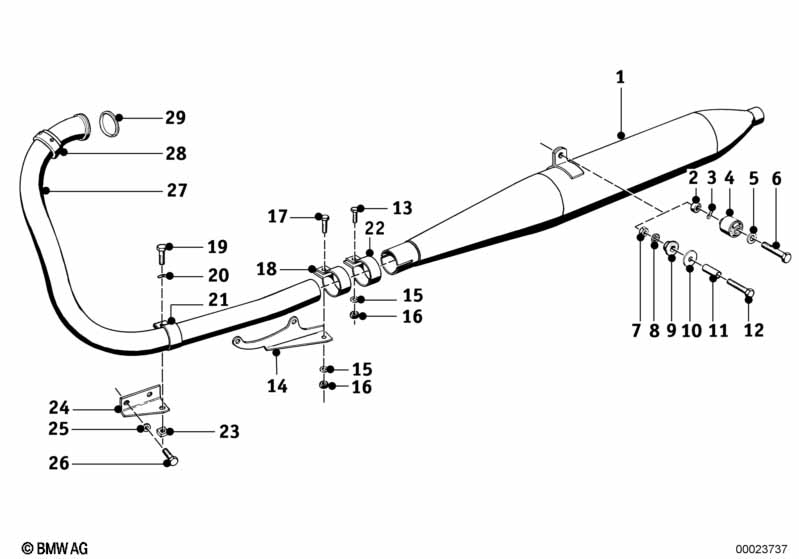

This Exhaust system technical drawing provides a detailed breakdown of the assembly for the R 27 -66 R27. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1961.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Muffler | 1 | 18124090006 | ENDED | Shop at ECS Tuning | |||||
| 02 | Hex nut | SW 14 | 1 | 11110001104 | $2.96 | Shop at ECS Tuning | ||||
| 03 | Wave washer | B10-ZNS3 | 1 | 07119904463 | Shop at ECS Tuning | |||||
| 04 | Rubber Mounting | 1 | 18214090144 | ENDED | Shop at ECS Tuning | |||||
| 05 | Washer | 10-200 ZNS3 | 1 | 07119904209 | $1.16 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M10X50 | 1 | 07119912646 | ENDED | Shop at ECS Tuning | ||||
| 16 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 18 | Pipe clamp | 1 | 18214090159 | $15.65 | Shop at ECS Tuning | |||||
| 19 | Hex bolt | M8X22 | 1 | 07119913482 | ENDED | Shop at ECS Tuning | ||||
| 21 | Pipe clamp | 1 | 18214090156 | ENDED | Shop at ECS Tuning | |||||
| 23 | Square nut | M8 | 1 | 07119921227 | $0.38 | ENDED | Shop at ECS Tuning | |||
| 24 | Exhaust support | 1 | 08/1960 | 08/1966 | 18214090141 | $14.15 | ENDED | Shop at ECS Tuning | ||
| 25 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 26 | Hex bolt | M8X18-8.8-ZNS3 | 2 | 07119904146 | $0.65 | Shop at ECS Tuning | ||||
| 27 | Exhaust pipe | 1 | 18114090067 | $271.25 | Shop at ECS Tuning | |||||
| 28 | Nut | 1 | 18114090110 | ENDED | Shop at ECS Tuning | |||||
| 29 | Gasket ring | C35X41 | 1 | 07119963470 | $1.73 | ENDED | Shop at ECS Tuning |
