Exhaust system, rear for BMW 5 Series E39 530d

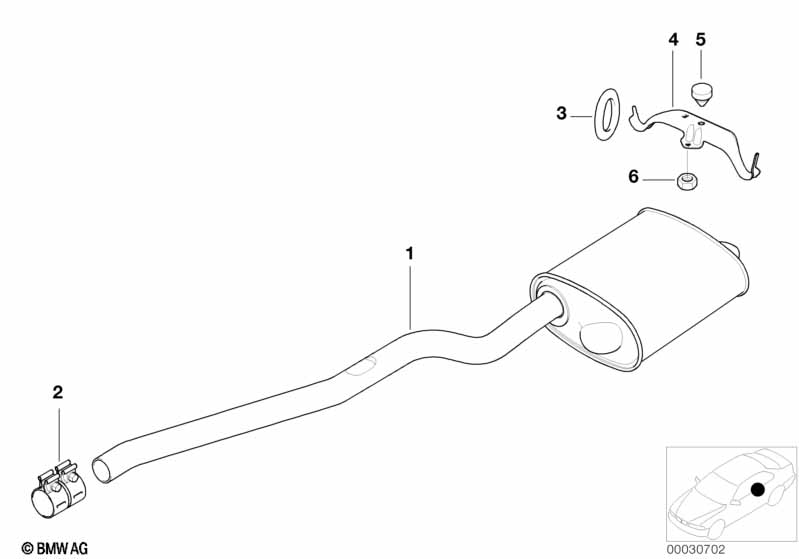

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear muffler | 1 | 18312248263 | $523.15 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package |
P337A=Yes |
|||||||||
| 01 | Rear muffler | 1 | 18107832077 | Shop at ECS Tuning | ||||||
| 02 | Clamping bush | D=65 X 70MM | 1 | 18307536426 | $50.38 | Shop at ECS Tuning | ||||
| 03 | Rubber Ring | 2 | 18202244720 | $5.18 | Shop at ECS Tuning | |||||
| 04 | Exhaust support | 1 | 18202248578 | Shop at ECS Tuning | ||||||
| 05 | Pushrod seal | 1 | 51211913779 | $1.03 | Shop at ECS Tuning | |||||
| 06 | Self-locking collar nut | M8-8 ZNS3 | 1 | 31316769731 | $0.38 | Shop at ECS Tuning | ||||
