Catalytic converter/front silencer for BMW 5 Series E39 530d

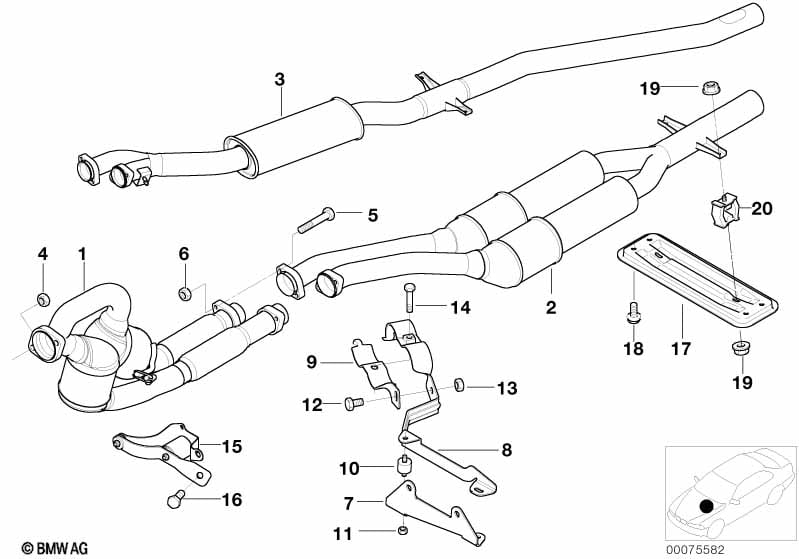

This Catalytic converter/front silencer technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Consider the customer and the environment, install a retrofit diesel particulate filter instead of a replacement precatalyst! For additional information see HG18 FG10 |
||||||||||
| 01 | RP catalytic conv.close to the engine | EU3 | 1 | 18317785911 | Shop at ECS Tuning | |||||
| 02 | RP exhaust pipe catalytic converter | 1 | 12/2002 | 18312248262 | Shop at ECS Tuning | |||||
| 03 | Center muffler | 1 | 12/2002 | 18307785888 | $326.99 | Shop at ECS Tuning | ||||
| 04 | Hex nut | M10 | 2 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M8X55-8.8 | 4 | 07119902957 | $5.27 | Shop at ECS Tuning | ||||
| 06 | Hex nut | M8 SW12 | 4 | 11621744323 | $0.85 | Shop at ECS Tuning | ||||
| 07 | Bracket | 1 | 18212247978 | Shop at ECS Tuning | ||||||
| 08 | Exhaust support | 1 | 12/2002 | 18212247980 | $13.73 | Shop at ECS Tuning | ||||
| 08 | Exhaust support | 1 | 12/2002 | 18217785901 | Shop at ECS Tuning | |||||
| 09 | Support shackle | 1 | 18212247983 | Shop at ECS Tuning | ||||||
| 10 | Rubber Mounting | 2 | 17111113699 | $5.18 | Shop at ECS Tuning | |||||
| 11 | Hex nut with plate | M6-8-ZNNIV SI | 4 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M8X16-10.9-PHR | 1 | 05/2001 | 07119913612 | $0.62 | Shop at ECS Tuning | |||
| 12 | Hex bolt with washer | M8X18-U1-8.8 | 1 | 07119905529 | $0.96 | Shop at ECS Tuning | ||||
| 13 | Collar nut | M8-8-SC-ZNNIV | 1 | 05/2001 | 07119906089 | $0.32 | Shop at ECS Tuning | |||
| 13 | Hex nut | BM8-8-ZNNIV-SI | 1 | 07129904874 | Shop at ECS Tuning | |||||
| 14 | Hex bolt | M8X50 | 1 | 07119904533 | $2.84 | Shop at ECS Tuning | ||||
| 15 | Holder catalytic converter near engine | 1 | 18202249723 | Shop at ECS Tuning | ||||||
| 16 | Hex bolt with washer | M8X35-U1 | 1 | 07119905533 | $0.44 | Shop at ECS Tuning | ||||
| 17 | Connecting support | 1 | 18211745300 | $17.63 | Shop at ECS Tuning | |||||
| 18 | Hex bolt with washer | M8X18-U1-8.8 | 4 | 07119905529 | $0.96 | Shop at ECS Tuning | ||||
| 19 | Collar nut | M8-8-SC-ZNNIV | 4 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 20 | Rubber Mounting | 2 | 18211437236 | Shop at ECS Tuning | ||||||
