Lambda Probe Fixings for BMW 3 Series E36 323ti (2000)

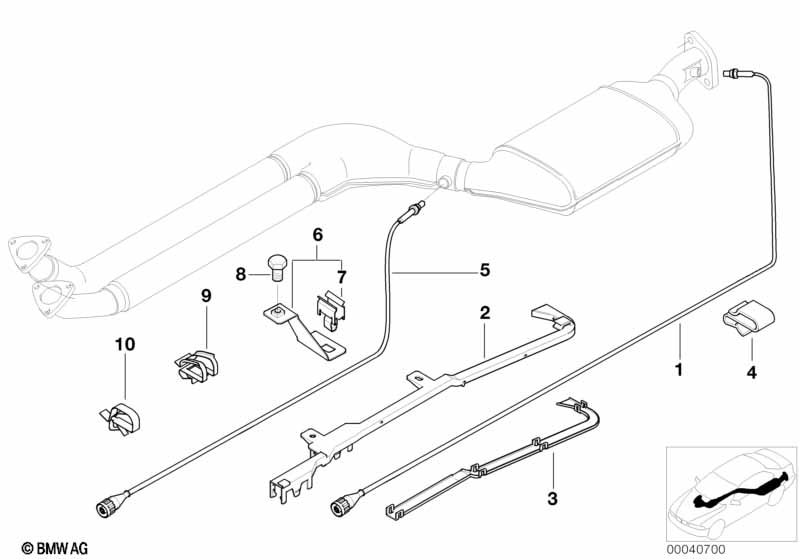

This Lambda Probe Fixings technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oxygen sensor | SIEMENS/L=990MM | 1 | 01/1999 | 11781427884 | $215.65 | Shop at ECS Tuning | |||
| 02 | Guide tube lower part | LAMBDA | 1 | 01/1999 | 11781744542 | $8.07 | ENDED | Shop at ECS Tuning | ||
| 03 | Guide tube upper part | LAMBDA | 1 | 01/1999 | 11781427639 | $8.07 | Shop at ECS Tuning | |||
| 05 | Oxygen sensor | SIEMENS/L=410MM | 1 | 01/1999 | 11781433071 | $215.65 | Shop at ECS Tuning | |||
| 06 | Lambda-probe bracket | 1 | 01/1999 | 11781438851 | Shop at ECS Tuning | |||||
| 07 | Plug-in connection bracket | 1 | 01/1999 | 07149157161 | $1.31 | Shop at ECS Tuning | ||||
| 08 | ISA screw | M6X16-8.8-ZNNIV | 1 | 01/1999 | 07129905536 | $0.64 | Shop at ECS Tuning | |||
| 09 | Clip | 1 | 01/1999 | 12521437136 | $0.63 | Shop at ECS Tuning | ||||
| 10 | Cable clamp | 3 | 01/1999 | 12521436023 | $0.68 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 323ti Lambda Probe Fixings?
- This technical diagram illustrates the Lambda Probe Fixings within the Exhaust system group for the 3 Series E36 323ti produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Oxygen sensor (Part #11781427884).
- Which models use the hardware listed in this Lambda Probe Fixings?
- The hardware and components featured in the Lambda Probe Fixings are specific to the 3 Series E36 323ti produced during 2000. These technical specifications ensure that parts like the Oxygen sensor (11781427884) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Lambda Probe Fixings assembly?
- Each item in the Lambda Probe Fixings corresponds to the numbered list below the illustration. For the 3 Series E36 323ti, you can identify the Oxygen sensor by locating its position on the schematic, which then links to the official BMW part number 11781427884 for the Exhaust system section.
