Catalytic converter/front silencer for BMW 5 Series E39 528i (2000)

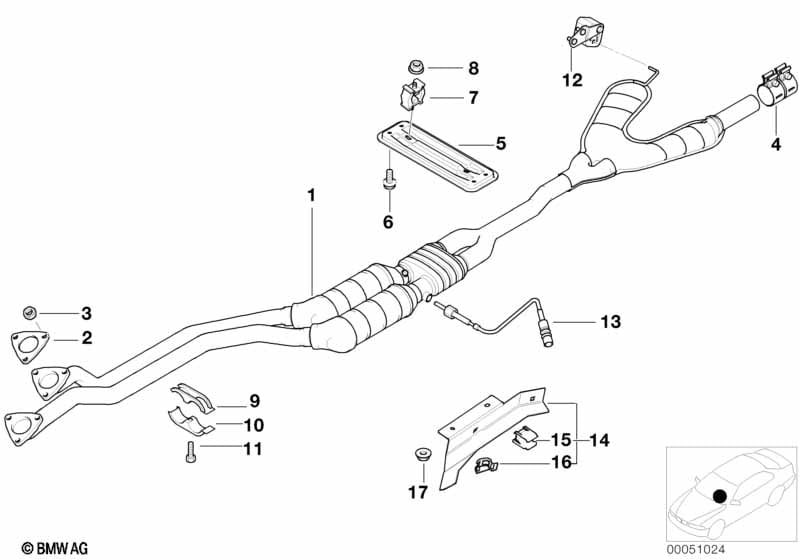

This Catalytic converter/front silencer technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version japan |
L807A=Yes |
||||||||
| 01 | Exhaust system | 1 | 09/1998 | 18101440367 | ENDED | Shop at ECS Tuning | ||||

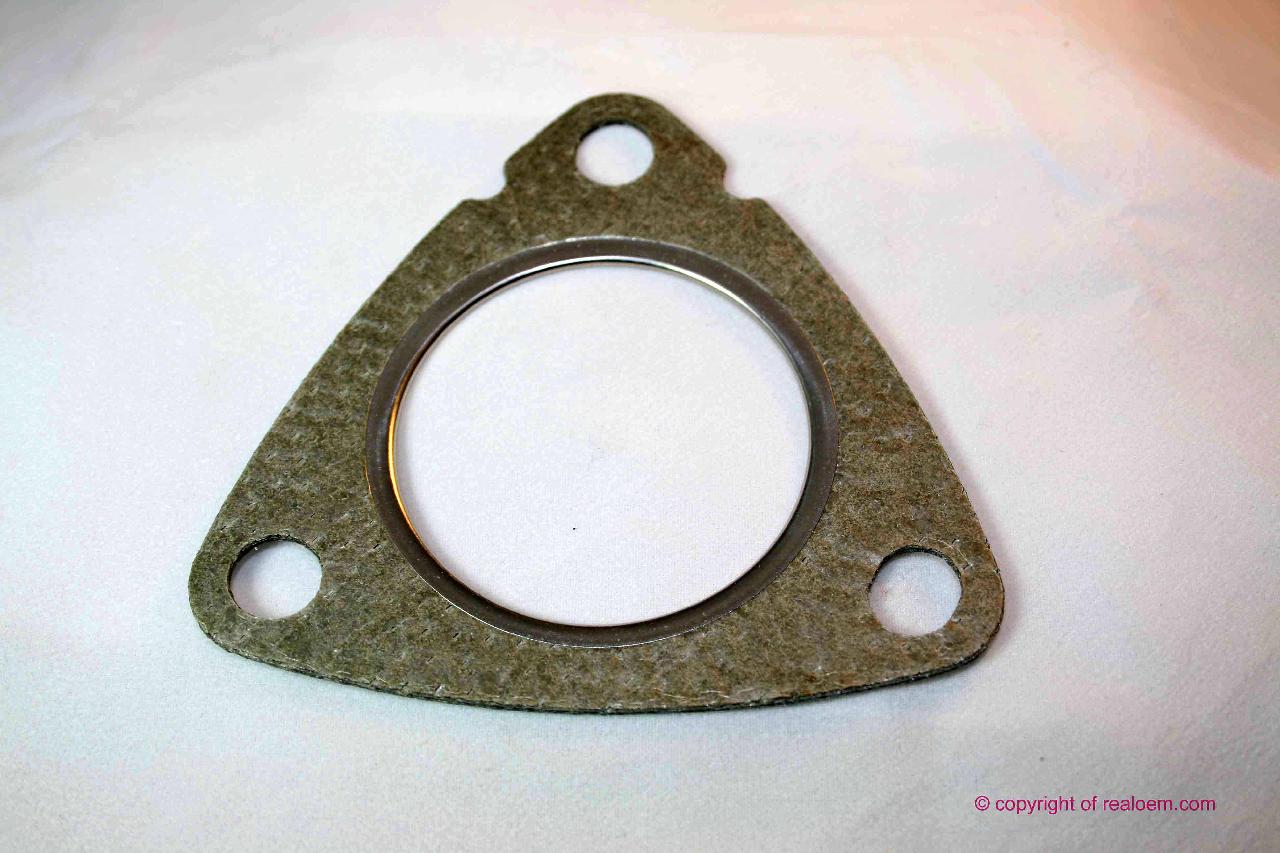

| 02 | Gasket Asbestos Free | 2 | 09/1998 | 18301716888 | $11.75 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Hex nut | M10 | 6 | 09/1998 | 18301737774 | $1.65 | Shop at ECS Tuning | |||
| 03 | Hex nut | M10 | 6 | 09/1998 | 18301737774 | $1.65 | Shop at ECS Tuning | |||
| 04 | Clamping bush | D=65 X 70MM | 1 | 09/1998 | 18307536426 | $50.38 | Shop at ECS Tuning | |||
| 05 | Connecting support | 1 | 09/1998 | 18211745300 | $17.63 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M8X18-U1-8.8 | 4 | 09/1998 | 07119905529 | $0.96 | Shop at ECS Tuning | |||
| 07 | Rubber Mounting | 1 | 09/1998 | 18211745426 | $21.41 | Shop at ECS Tuning | ||||
| 08 | Collar nut | M8-8-SC-ZNNIV | 2 | 09/1998 | 07119906089 | $0.32 | Shop at ECS Tuning | |||
| 09 | Clamp upper | D=45MM/50MM | 1 | 09/1998 | 18101433249 | $8.75 | Shop at ECS Tuning | |||
| 10 | Clamp lower | D=45MM/50MM | 1 | 09/1998 | 18101433250 | $8.55 | Shop at ECS Tuning | |||
| 11 | Hex bolt | M8X50 | 1 | 09/1998 | 07119904533 | $2.84 | Shop at ECS Tuning | |||
| 12 | Suspension loop | 1 | 09/1998 | 18201435348 | $25.64 | ENDED, SI 001796(165) | Shop at ECS Tuning | |||
| 13 | Lambda Monitor sensor | L=580MM | 2 | 09/1998 | 11781742051 | $215.65 | +core | Shop at ECS Tuning | ||
| 14 | Lambda-probe bracket | 1 | 09/1998 | 11781440376 | ENDED | Shop at ECS Tuning | ||||
| 15 | Holder | 2 | 09/1998 | 11787547163 | $0.83 | Shop at ECS Tuning | ||||
| 16 | Cable clamp | 2 | 09/1998 | 11787549563 | $1.04 | Shop at ECS Tuning | ||||
| 17 | Plastic nut for coarse threaded pin | M6 | 2 | 09/1998 | 16131176747 | $0.53 | Shop at ECS Tuning | |||
