Exhaust system for BMW 3 Series E46 330Ci (2001)

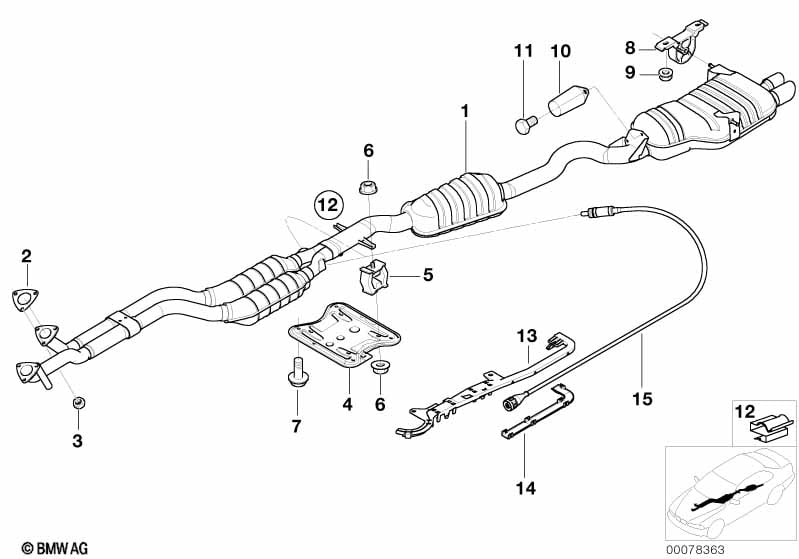

This Exhaust system technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exhaust system | EU3 | 1 | 18307502068 | Shop at ECS Tuning | |||||
| 02 | Gasket Asbestos Free | 2 | 18301716888 | $11.75 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex nut | M10 | 6 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 03 | Hex nut | M10 | 6 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 04 | Connecting support | 1 | 51712693023 | $51.43 | +core | Shop at ECS Tuning | ||||
| 05 | Rubber Mounting | 2 | 18211745426 | $21.41 | Shop at ECS Tuning | |||||
| 06 | Flange nut | M8 | 4 | 07143413174 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M8X18-U1-8.8 | 4 | 07119905529 | $0.96 | Shop at ECS Tuning | ||||
| 08 | Rubber Mounting | 2 | 18207503246 | $21.41 | Shop at ECS Tuning | |||||
| 09 | Flange nut | M8 | 4 | 07143413174 | $0.36 | Shop at ECS Tuning | ||||
| 12 | Fixing clamp | 1 | 11787547213 | $0.40 | Shop at ECS Tuning | |||||
| 13 | Cable guide | 1 | 11781716343 | +core | Shop at ECS Tuning | |||||
| 14 | Cable guide | 1 | 11781716380 | +core | Shop at ECS Tuning | |||||
| 15 | Lambda Monitor sensor | L=955MM > 765MM | 2 | 11781739845 | $215.65 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
