Center and rear muffler for BMW 3 Series E46 330Ci (2001)

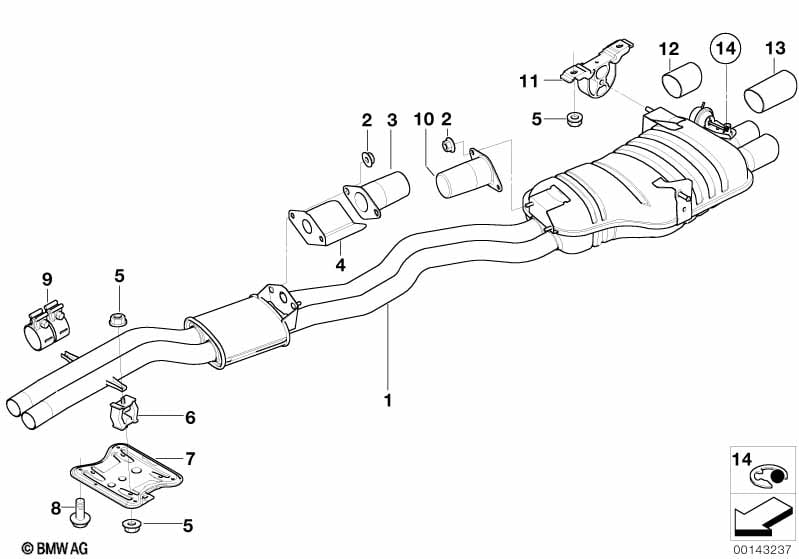

This Center and rear muffler technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Automatic transmission |
S205A=No |
|||||||||
| 01 | Center and rear muffler | 1 | 18107504174 | $835.17 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 01 | Center and rear muffler | 1 | 18107506021 | $835.17 | Shop at ECS Tuning | |||||
| 02 | Self-locking collar nut | M8-10 ZNS3 | 2 | 07119905374 | Shop at ECS Tuning | |||||
| 05 | Flange nut | M8 | 4 | 07143413174 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M8X18-U1-8.8 | 4 | 07119905529 | $0.96 | Shop at ECS Tuning | ||||
| 09 | Clamping bush | D=60 X 70MM | 2 | 18307560777 | $34.61 | Shop at ECS Tuning | ||||
| 11 | Rubber Mounting | 2 | 18207503246 | $21.41 | Shop at ECS Tuning | |||||
| 12 | Tailpipe tip, chrome | 1 | 18107511434 | $39.50 | Shop at ECS Tuning | |||||
| 13 | Tailpipe tip, chrome | 1 | 18107511433 | $39.50 | Shop at ECS Tuning | |||||
| For vehicles with Chrome Line exterieur |
S346A=Yes |
|||||||||
| 13 | Tailpipe tip, chrome | 2 | 18107500194 | $39.50 | Shop at ECS Tuning | |||||
