Vacuum control, exhaust flap for BMW 3 Series E46 330Ci (2006)

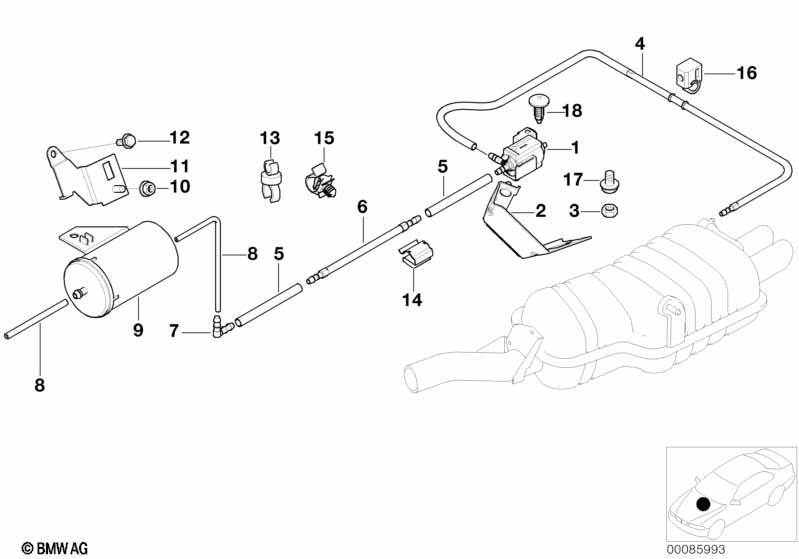

This Vacuum control, exhaust flap technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Electr.valve | 1 | 11747810831 | $46.70 | Shop at ECS Tuning | |||||
| 02 | Bracket f electric change-over valve | 1 | 18107513300 | $11.66 | Shop at ECS Tuning | |||||
| 03 | Hex nut with plate | M5 | 1 | 63259128043 | $0.72 | Shop at ECS Tuning | ||||
| 05 | Vacuum hose blue | 3,3X1,8 | X | 11747797082 | $17.14 | Shop at ECS Tuning | ||||
| 06 | Vacuum pipe | 1 | 18107504932 | ENDED, +core | Shop at ECS Tuning | |||||
| 07 | Support | 1 | 22116759728 | $0.79 | Shop at ECS Tuning | |||||
| 08 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 08 | Vacuum hose black | 3,5X1,8 | X | 07/2005 | 11727545323 | $14.82 | Shop at ECS Tuning | |||
| 09 | Vacuum tank | 1 | 18101740207 | $24.37 | Shop at ECS Tuning | |||||
| 10 | Hex nut | M8-ZNS3 | 1 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| 11 | Bracket, vacuum accumulator | 1 | 18107502473 | $8.22 | Shop at ECS Tuning | |||||
| 12 | Hex bolt with washer | M8X16 | 1 | 07119905528 | $0.62 | Shop at ECS Tuning | ||||
| 13 | Holder | 1 | 62121364482 | $1.17 | Shop at ECS Tuning | |||||
| 14 | Clamp | 1 | 07147202015 | Shop at ECS Tuning | ||||||
| 15 | Clip retainer | 1 | 61138368029 | $0.43 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
