Center and rear muffler for BMW 3 Series E46 325Ci (2006)

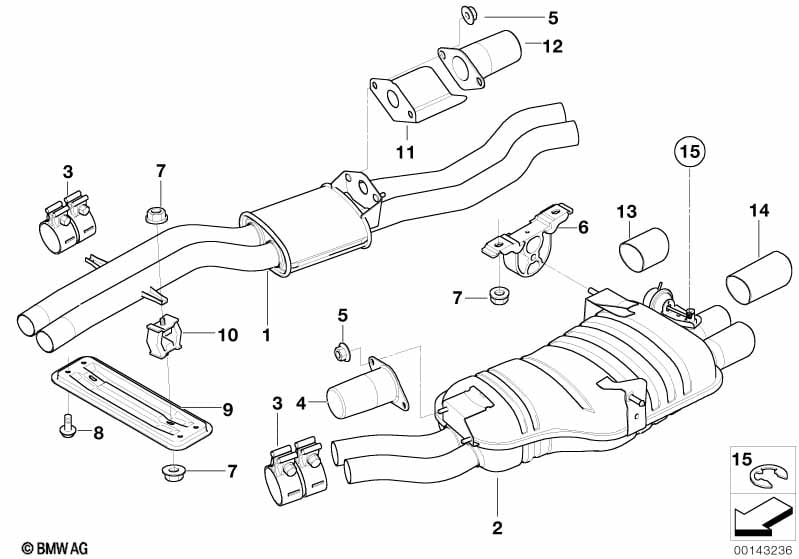

This Center and rear muffler technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Center muffler | 1 | 18107504170 | $393.84 | Shop at ECS Tuning | |||||
| 02 | Rear muffler | 1 | 18107504171 | $664.98 | Shop at ECS Tuning | |||||
| 02 | Rear muffler | 1 | 09/2001 | 18107516921 | $664.98 | Shop at ECS Tuning | ||||
| 03 | Clamping bush | D=60 X 70MM | 4 | 18307560777 | $34.61 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 04 | Vibration absorber | 32 HZ | 1 | 18107506145 | $64.62 | Shop at ECS Tuning | ||||
| 05 | Self-locking collar nut | M8-10 ZNS3 | 4 | 07119905374 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 05 | Self-locking collar nut | M8-10 ZNS3 | 4 | 07119905374 | Shop at ECS Tuning | |||||
| 06 | Rubber Mounting | 2 | 18207503246 | $21.41 | Shop at ECS Tuning | |||||
| 07 | Flange nut | M8 | 8 | 07143413174 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M8X18-U1-8.8 | 4 | 07119905529 | $0.96 | Shop at ECS Tuning | ||||
| 09 | Connecting support | 1 | 18211436309 | $11.66 | Shop at ECS Tuning | |||||
| 10 | Rubber Mounting | 2 | 18211745426 | $21.41 | Shop at ECS Tuning | |||||
| 11 | Heat resistant plate | 1 | 18227508863 | $21.00 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 11 | Heat resistant plate | 1 | 06/2001 | 18227508863 | $21.00 | Shop at ECS Tuning | ||||
| 12 | Vibration absorber | 1 | 18107504361 | $64.62 | +core | Shop at ECS Tuning | ||||
| 12 | Vibration absorber | 32 HZ | 1 | 18107506145 | $64.62 | Shop at ECS Tuning | ||||
| For vehicles with Chrome Line exterieur or Aerodynamics package |
S346A=Yes S716A=Yes |
|||||||||
| 14 | Tailpipe tip, chrome | 2 | 18107500194 | $39.50 | Shop at ECS Tuning | |||||
| For vehicles with Chrome Line exterieur or Aerodynamics package or Individual series "Clubsport" |
S346A=Yes S716A=Yes S768A=Yes |
|||||||||
| 14 | Tailpipe tip, chrome | 2 | 18107500194 | $39.50 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
