Front muffler for BMW 5 Series E39 530i (2003)

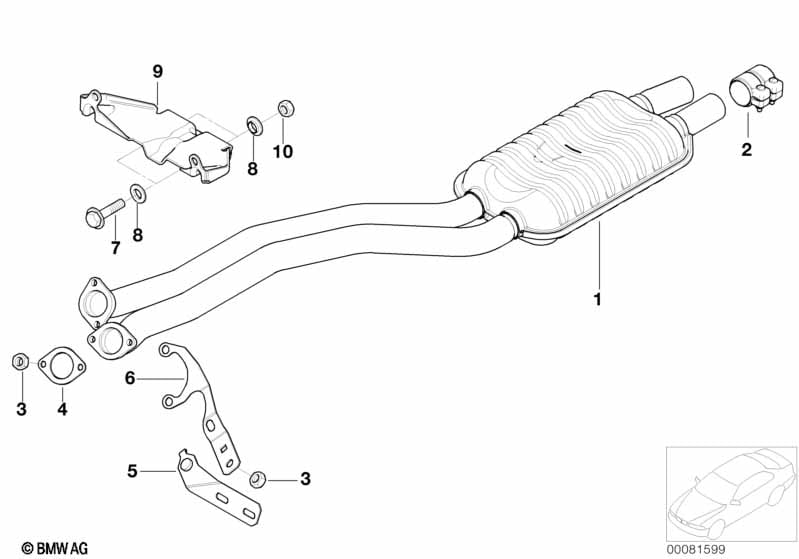

This Front muffler technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front muffler | 1 | 18107504978 | $428.15 | Shop at ECS Tuning | |||||
| 02 | Clamping bush | D=60 X 70MM | 2 | 18307560777 | $34.61 | Shop at ECS Tuning | ||||
| 03 | Hex nut | M10 | 5 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 04 | Flat gasket | 2 | 18107502346 | $11.93 | Shop at ECS Tuning | |||||
| 05 | Bracket, front pipe | 1 | 18207508452 | $11.66 | Shop at ECS Tuning | |||||
| 06 | Connection plate | 1 | 18207508518 | $21.41 | Shop at ECS Tuning | |||||
| 07 | Hex bolt with washer | M8X35-U1 | 2 | 07119905533 | $0.44 | Shop at ECS Tuning | ||||
| 08 | Joint sleeve | D=8MM | 4 | 18207546579 | $2.86 | Shop at ECS Tuning | ||||
| 09 | Console | 1 | 18207508451 | $19.43 | +core | Shop at ECS Tuning | ||||
| 10 | Self-locking hex nut | M8-8-ZNS3 | 2 | 07129904002 | $0.18 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 530i Front muffler?
- This technical diagram illustrates the Front muffler within the Exhaust system group for the 5 Series E39 530i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Front muffler (Part #18107504978).
- Which models use the hardware listed in this Front muffler?
- The hardware and components featured in the Front muffler are specific to the 5 Series E39 530i produced during 2003. These technical specifications ensure that parts like the Front muffler (18107504978) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front muffler assembly?
- Each item in the Front muffler corresponds to the numbered list below the illustration. For the 5 Series E39 530i, you can identify the Front muffler by locating its position on the schematic, which then links to the official BMW part number 18107504978 for the Exhaust system section.
