Suspension parts exhaust for BMW 3 Series E46 325xi (2001)

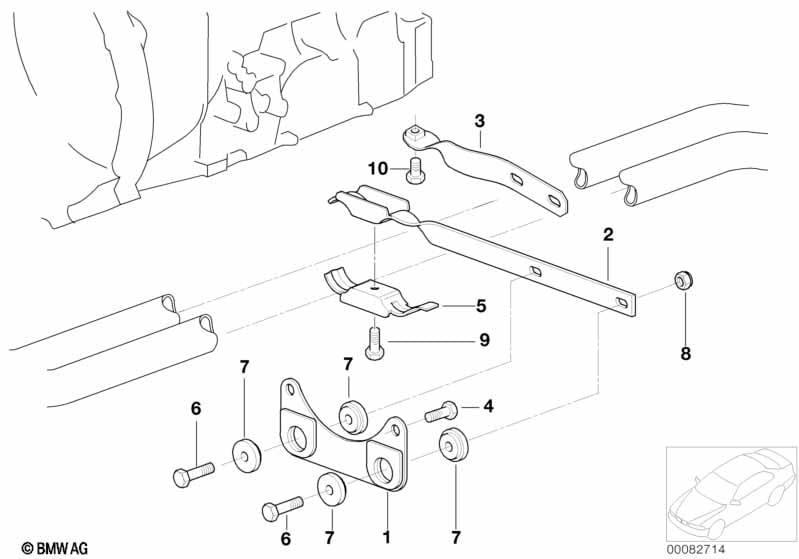

This Suspension parts exhaust technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bracket | 1 | 09/2001 | 18207502523 | $9.97 | Shop at ECS Tuning | ||||
| 02 | Exhaust support | 1 | 18301436331 | $7.82 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission |
S205A=No |
|||||||||
| 02 | Exhaust support | 1 | 18301436331 | $7.82 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M8X20-ZNNIV SI | 2 | 07119903039 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission |
S205A=No |
|||||||||
| 04 | Hex bolt | M8X20-ZNNIV SI | 2 | 07119903039 | Shop at ECS Tuning | |||||
| 05 | Clamp lower | D=45MM/50MM | 1 | 18101433250 | $8.55 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
S205A=No |
|||||||||
| 05 | Clamp lower | D=45MM/50MM | 1 | 18101433250 | $8.55 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M8X35-U1 | 2 | 01/2002 | 07119905533 | $0.44 | Shop at ECS Tuning | |||
| 06 | Fillister-head screw | M8X35-10.9-ZNS3 | 2 | 07119906650 | $0.87 | Shop at ECS Tuning | ||||
| 07 | Joint sleeve | D=8MM | 4 | 18207546579 | $2.86 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
S205A=No |
|||||||||
| 07 | Joint sleeve | D=8MM | 4 | 18207546579 | $2.86 | Shop at ECS Tuning | ||||
| 08 | Self-locking hex nut | M8-8-ZNS3 | 2 | 01/2002 | 07129904002 | $0.18 | Shop at ECS Tuning | |||
| 08 | Self-locking collar nut | M8-8 ZNS3 | 2 | 31316769731 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M8X55-8.8 | 1 | 07119902957 | $5.27 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
S205A=No |
|||||||||
| 09 | Hex bolt | M8X55-8.8 | 1 | 07119902957 | $5.27 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 325xi Suspension parts exhaust?
- This technical diagram illustrates the Suspension parts exhaust within the Exhaust system group for the 3 Series E46 325xi produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Bracket (Part #18207502523).
- Which models use the hardware listed in this Suspension parts exhaust?
- The hardware and components featured in the Suspension parts exhaust are specific to the 3 Series E46 325xi produced during 2001. These technical specifications ensure that parts like the Bracket (18207502523) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Suspension parts exhaust assembly?
- Each item in the Suspension parts exhaust corresponds to the numbered list below the illustration. For the 3 Series E46 325xi, you can identify the Bracket by locating its position on the schematic, which then links to the official BMW part number 18207502523 for the Exhaust system section.
