Front muffler for BMW 7 Series E66 740Li (2008)

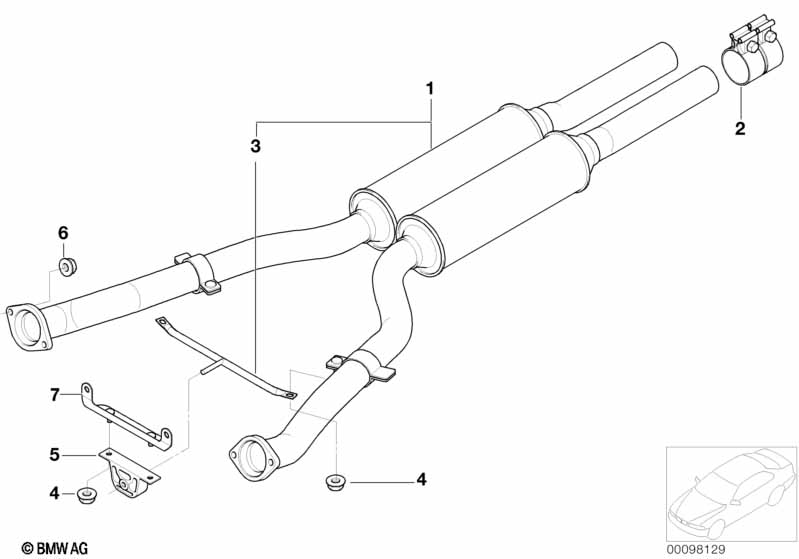

This Front muffler technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exhaust pipes with primary silencer | 1 | 18307567168 | $573.58 | ENDED | Shop at ECS Tuning | ||||
| 02 | Clamping bush | D=55 X 70MM | 2 | 18307560778 | $34.61 | Shop at ECS Tuning | ||||
| 03 | Cross brace | 1 | 18107519016 | $35.68 | Shop at ECS Tuning | |||||
| 04 | Collar nut | M8-8-SC-ZNNIV | 4 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 05 | Rubber Mounting | 1 | 18207570987 | $20.83 | Shop at ECS Tuning | |||||
| 06 | Collar nut | M8 | 4 | 18107523805 | $2.55 | Shop at ECS Tuning | ||||
| 07 | Bracket | 1 | 18207505781 | $10.54 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
