Vacuum control, exhaust flap for BMW 7 Series E66 745Li (2005)

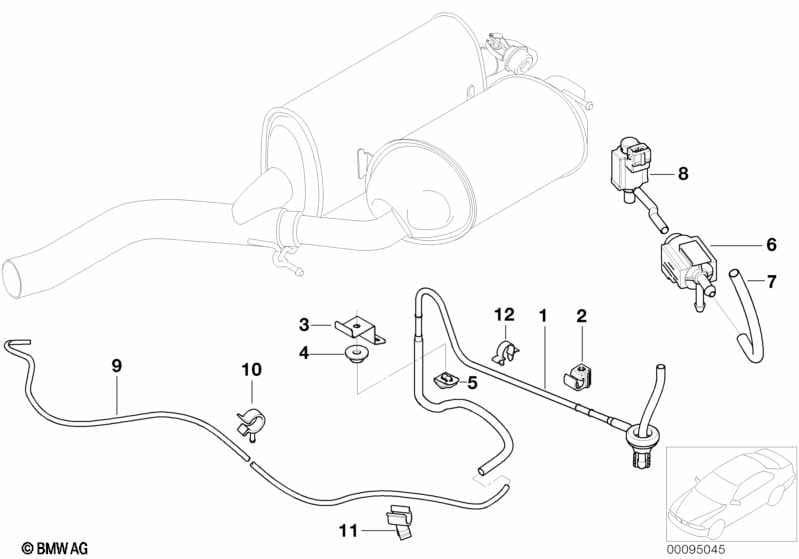

This Vacuum control, exhaust flap technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 745Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vacuum pipe | 1 | 18107511030 | $26.95 | Shop at ECS Tuning | |||||
| 02 | Pipe clip | 2 | 18107512574 | $0.92 | ENDED | Shop at ECS Tuning | ||||
| 03 | Tubing support | 1 | 18107511033 | $1.58 | Shop at ECS Tuning | |||||
| 04 | Body nut | D=18MM, ZNS-3 | 1 | 07146949379 | $0.20 | Shop at ECS Tuning | ||||
| 05 | Cable holder | 1 | 18107512752 | $0.42 | Shop at ECS Tuning | |||||
| 06 | Electr.valve | 1 | 18107516376 | $54.00 | Shop at ECS Tuning | |||||
| 07 | Vacuum hose blue | 3,3X1,8 | X | 11747797082 | $17.14 | Shop at ECS Tuning | ||||
| 08 | Electr.valve | 1 | 18107519051 | $52.84 | +core | Shop at ECS Tuning | ||||
| 09 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 10 | Tubing support | 1 | 11427831835 | $1.35 | Shop at ECS Tuning | |||||
| 12 | Tubing support | D=10,8MM | 1 | 64111364073 | $0.57 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E66 745Li Vacuum control, exhaust flap?
- This technical diagram illustrates the Vacuum control, exhaust flap within the Exhaust system group for the 7 Series E66 745Li produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Vacuum pipe (Part #18107511030).
- Which models use the hardware listed in this Vacuum control, exhaust flap?
- The hardware and components featured in the Vacuum control, exhaust flap are specific to the 7 Series E66 745Li produced during 2005. These technical specifications ensure that parts like the Vacuum pipe (18107511030) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Vacuum control, exhaust flap assembly?
- Each item in the Vacuum control, exhaust flap corresponds to the numbered list below the illustration. For the 7 Series E66 745Li, you can identify the Vacuum pipe by locating its position on the schematic, which then links to the official BMW part number 18107511030 for the Exhaust system section.
