Exhaust system, rear for BMW 7 Series E65 760i (2005)

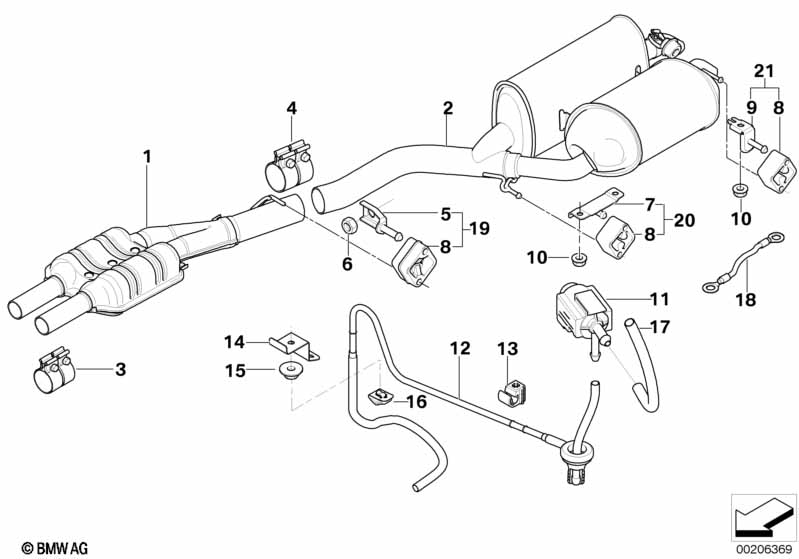

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 760i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Center muffler | 1 | 18307529252 | $518.94 | Shop at ECS Tuning | |||||
| 02 | Rear muffler with exhaust flap | 1 | 18307551711 | $1095.17 | Shop at ECS Tuning | |||||
| 03 | Clamping bush | D=63,5 X 70MM | 2 | 18307536425 | $50.38 | Shop at ECS Tuning | ||||
| 04 | Clamping bush | D=85 X 90MM | 1 | 18307560782 | $113.93 | Shop at ECS Tuning | ||||
| 05 | Bracket | 1 | 18207510992 | $8.07 | Shop at ECS Tuning | |||||
| 06 | Hex nut | M12X1,5ZNNIV SI | 1 | 07129904866 | $1.85 | Shop at ECS Tuning | ||||
| 07 | Bracket | 1 | 18307521388 | $17.63 | Shop at ECS Tuning | |||||
| 08 | Rubber Mounting | 4 | 18207578238 | $16.30 | Shop at ECS Tuning | |||||
| 09 | Position number | 2 | 01009056666 | ENDED | Shop at ECS Tuning | |||||
| 10 | Hex nut | M8-A2-70 | 6 | 07119904920 | $1.29 | Shop at ECS Tuning | ||||
| 11 | Electr.valve | 1 | 11747810831 | $46.70 | Shop at ECS Tuning | |||||
| 12 | Vacuum pipe | 1 | 18107511030 | $26.95 | Shop at ECS Tuning | |||||
| 13 | Pipe clip | 2 | 18107512574 | $0.92 | ENDED | Shop at ECS Tuning | ||||
| 14 | Tubing support | 1 | 18107511033 | $1.58 | Shop at ECS Tuning | |||||
| 15 | Body nut | D=18MM, ZNS-3 | 1 | 07146949379 | $0.20 | Shop at ECS Tuning | ||||
| 16 | Cable holder | 1 | 18107512752 | $0.42 | Shop at ECS Tuning | |||||
| 17 | Vacuum hose blue | 3,3X1,8 | X | 11747797082 | $17.14 | Shop at ECS Tuning | ||||
| 18 | Ground strap, end muffler | 1 | 65317527848 | $7.82 | Shop at ECS Tuning | |||||
| 19 | Rubber mount with bracket | 1 | 18207510997 | $31.43 | ENDED | Shop at ECS Tuning | ||||
| 20 | Rubber mount with bracket | 1 | 18107510993 | $31.43 | ENDED | Shop at ECS Tuning | ||||
| 21 | Rubber mount with bracket | 2 | 18107510994 | $32.62 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
