Center muffler for BMW 6 Series E63 650i (2007)

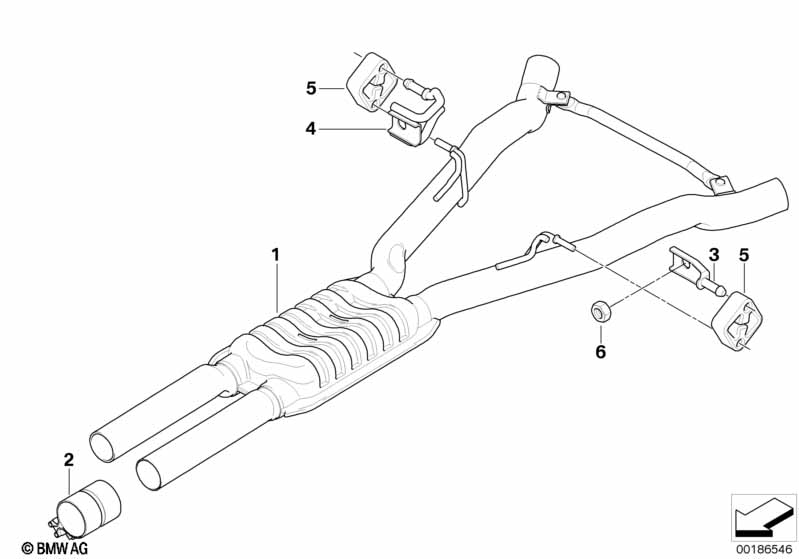

This Center muffler technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Center muffler | 1 | 18107542654 | $629.73 | ENDED | Shop at ECS Tuning | ||||
| 02 | Clamping bush | D=55 X 70MM | 4 | 18307560778 | $34.61 | Shop at ECS Tuning | ||||
| 03 | Rubber mount with bracket | 1 | 18207526195 | $32.62 | Shop at ECS Tuning | |||||
| 04 | Rubber mount with bracket | 1 | 18207526197 | $32.62 | Shop at ECS Tuning | |||||
| 05 | Rubber Ring | 2 | 18207578239 | $21.41 | +core | Shop at ECS Tuning | ||||
| 06 | Hex nut | M12X1,5ZNNIV SI | 2 | 07129904866 | $1.85 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E63 650i Center muffler?
- This technical diagram illustrates the Center muffler within the Exhaust system group for the 6 Series E63 650i produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Center muffler (Part #18107542654).
- Which models use the hardware listed in this Center muffler?
- The hardware and components featured in the Center muffler are specific to the 6 Series E63 650i produced during 2007. These technical specifications ensure that parts like the Center muffler (18107542654) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Center muffler assembly?
- Each item in the Center muffler corresponds to the numbered list below the illustration. For the 6 Series E63 650i, you can identify the Center muffler by locating its position on the schematic, which then links to the official BMW part number 18107542654 for the Exhaust system section.
