Exhaust system with catalyst for BMW 5 Series E28 535i (1987)

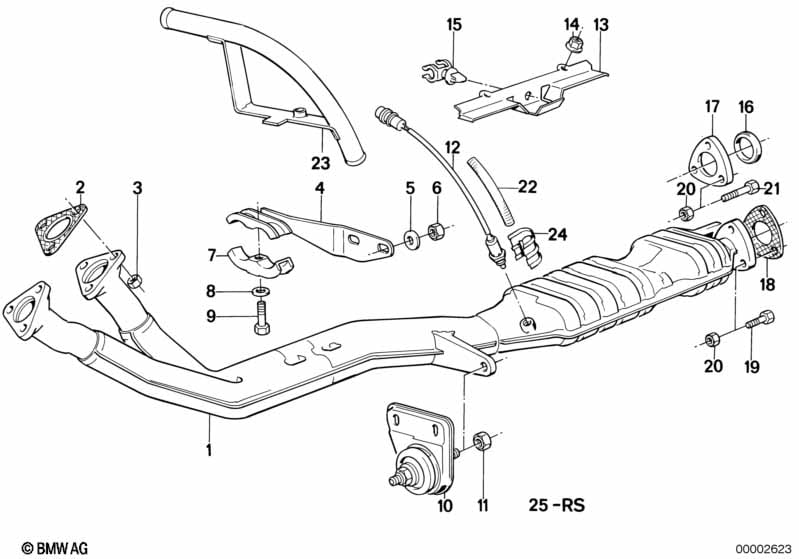

This Exhaust system with catalyst technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exhaust pipe catalyst preparation | 1 | 11761710828 | Shop at ECS Tuning | ||||||
| 01 | RP exhaust pipe catalytic converter | 1 | 09/1985 | 11761716755 | Shop at ECS Tuning | |||||
| For vehicles with National version Switzerland |
L804A=Yes |
|||||||||
| 01 | RP-exhaust pipe catalytic converter | 1 | 09/1986 | 11761716756 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and 5-speed sports gearbox |
L810A=Yes =Yes |
|||||||||
| 01 | Exhaust pipe, catalytic converter | 1 | 11761710923 | ENDED | Shop at ECS Tuning | |||||
| 01 | RP-exhaust pipe catalytic converter | 1 | 11761716761 | ENDED | Shop at ECS Tuning | |||||
| 02 | Gasket Asbestos Free | 2 | 11761711717 | $18.37 | Shop at ECS Tuning | |||||
| 03 | Hex nut | M10 | 6 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 04 | Holder | 1 | 09/1985 | 11761706297 | $28.31 | Shop at ECS Tuning | ||||
| CATALYZER PREPARATION CONVENTIONAL EXHAUST TECHNIQUE |
||||||||||
| 04 | Exhaust support | 1 | 09/1985 | 18211176617 | $16.38 | Shop at ECS Tuning | ||||
| For vehicles with National version Switzerland |
L804A=Yes |
|||||||||
| 04 | Holder | 1 | 09/1986 | 11761716650 | $29.42 | ENDED | Shop at ECS Tuning | |||
| 05 | Washer | A8,4 | 2 | 33311108205 | $0.16 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M8X20-ZNNIV SI | 2 | 07119903039 | Shop at ECS Tuning | |||||
| 07 | Pipe clamp | 1 | 18211175787 | $11.57 | Shop at ECS Tuning | |||||
| CATALYZER PREPARATION CONVENTIONAL EXHAUST TECHNIQUE |
||||||||||
| 07 | Pipe clamp | 1 | 09/1985 | 18211176919 | $10.64 | Shop at ECS Tuning | ||||
| 08 | Washer | 8,4X16X1,6-ZNNV | 1 | 07119907030 | Shop at ECS Tuning | |||||
| 09 | Hexagon bolt | M8X65 | 1 | 07119903018 | Shop at ECS Tuning | |||||
| CATALYZER PREPARATION CONVENTIONAL EXHAUST TECHNIQUE |
||||||||||
| 09 | Hexagon bolt | M8X65 | 1 | 09/1985 | 07119903018 | Shop at ECS Tuning | ||||
| 12 | Oxygen sensor | L=1790MM | 1 | 09/1986 | 11781716156 | $218.18 | Shop at ECS Tuning | |||
| 13 | Bracket | 1 | 12521707275 | $3.11 | ENDED | Shop at ECS Tuning | ||||
| 14 | Plastic nut for coarse threaded pin | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 15 | Holder | D = 13MM | 1 | 61131371074 | $2.52 | ENDED | Shop at ECS Tuning | |||
| 16 | Gasket ring asbesto-free | 45MM | 1 | 18111723533 | Shop at ECS Tuning | |||||
| 17 | Flange | 1 | 18111178137 | $31.91 | Shop at ECS Tuning | |||||
| 18 | Gasket Asbestos Free | 1 | 18301723886 | $10.83 | Shop at ECS Tuning | |||||
| 19 | Hex bolt | M8X35 | 3 | 07119913676 | $0.36 | Shop at ECS Tuning | ||||
| 20 | Hex nut wiht flange | M8 | 6 | 18307620549 | Shop at ECS Tuning | |||||
| 21 | Hex bolt | M8X43-8.8-ZNS3 | 3 | 07119903076 | $0.71 | Shop at ECS Tuning | ||||
| 22 | Spiral conduit | 100MM | 1 | 61131363375 | $2.66 | Shop at ECS Tuning | ||||
| 23 | Guide | 1 | 11781714410 | $17.94 | ENDED | Shop at ECS Tuning | ||||
| 24 | Protection plate | 1 | 11781710590 | $33.49 | ENDED, +core | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
