Rear muffler for BMW 1 Series E88 118i (2013)

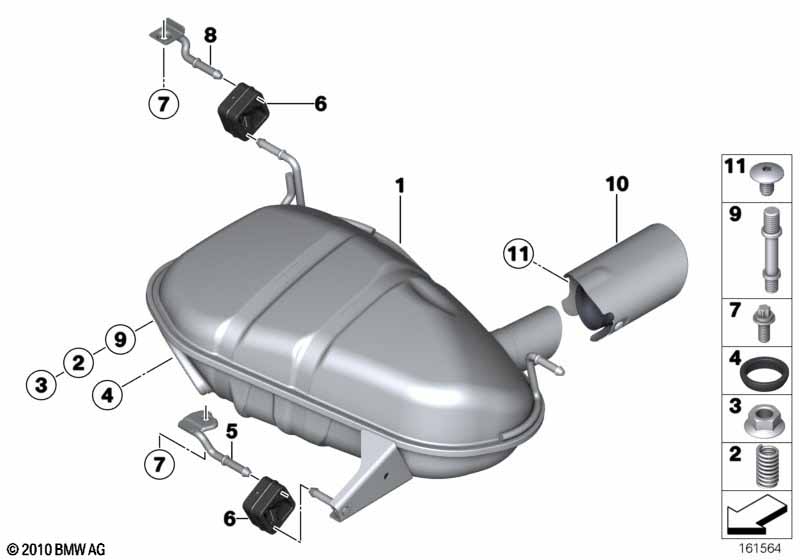

This Rear muffler technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 118i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear muffler | 1 | 18307646714 | Shop at ECS Tuning | ||||||
| 02 | Spiral spring | 2 | 18307790610 | $10.62 | Shop at ECS Tuning | |||||
| 03 | Hex nut wiht flange | M12X1,5 | 2 | 18307562097 | Shop at ECS Tuning | |||||
| 04 | Gasket ring | 1 | 18107532927 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Hex nut wiht flange | M12X1,5 | 2 | 18307562097 | Shop at ECS Tuning | |||||
| 05 | Holder | 1 | 18307574943 | Shop at ECS Tuning | ||||||
| 06 | Rubber Mounting | 3 | 18207578238 | $16.30 | Shop at ECS Tuning | |||||
| 07 | ASA-Bolt | M8X20-U1-8.8 | 2 | 07129904559 | $0.71 | Shop at ECS Tuning | ||||
| 07 | Torx-bolt with washer | ASA M8X25 | 2 | 51217062145 | $1.17 | Shop at ECS Tuning | ||||
| For vehicles with Towing hitch, detachable |
S235A=No |
|||||||||
| 08 | Holder | 1 | 18107522201 | Shop at ECS Tuning | ||||||
| 09 | Knurled bolt | 2 | 18307534179 | Shop at ECS Tuning | ||||||
| For vehicles with M Sports package or Limited Edition Lifestyle or Exclusive Edition or Sports Edition |
P337A=Yes P7L1A=Yes P7MCA=Yes P7MFA=Yes |
|||||||||
| 10 | Tailpipe end piece, alu-look | 1 | 18307576822 | Shop at ECS Tuning | ||||||
| 11 | Fillister head screw | M6X10 | 1 | 52537654427 | $3.06 | Shop at ECS Tuning | ||||
