Center muffler for BMW 6 Series E63 630i (2007)

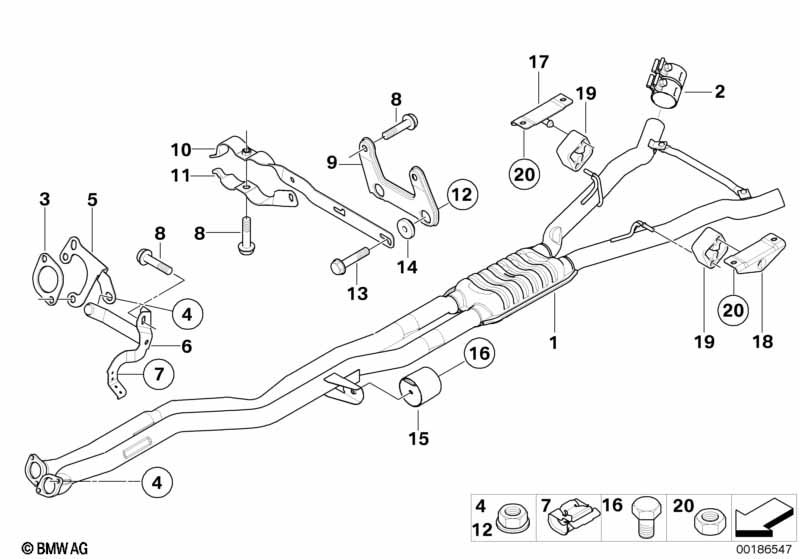

This Center muffler technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 630i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Center muffler | 1 | 18107532187 | Shop at ECS Tuning | ||||||
| 02 | Clamping bush | D=55 X 70MM | 2 | 18307560778 | $34.61 | Shop at ECS Tuning | ||||
| 03 | Flat gasket | 2 | 18107549447 | $14.36 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex nut | M10 | 4 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 04 | Hex nut | M10 | 5 | 18307530972 | $1.65 | Shop at ECS Tuning | ||||
| 05 | Connection plate | 1 | 18207556226 | $10.71 | Shop at ECS Tuning | |||||
| 06 | Support | 1 | 18207562124 | $35.24 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Bracket | 1 | 18207562125 | $17.29 | Shop at ECS Tuning | |||||
| 07 | Cable clamp | 2 | 11787547198 | $1.25 | Shop at ECS Tuning | |||||
| 08 | ASA-Bolt | M8X20-U1-8.8 | 2 | 07129904559 | $0.71 | Shop at ECS Tuning | ||||
| 09 | Bracket | H-GETRIEBE | 1 | 18207521345 | $17.63 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 09 | Bracket | 6HP19 | 1 | 18207521346 | $22.44 | Shop at ECS Tuning | ||||
| 10 | Bracket, front pipe | 1 | 18207535139 | Shop at ECS Tuning | ||||||
| 11 | Clamp | 1 | 18207535140 | Shop at ECS Tuning | ||||||
| 12 | Hex nut | BM8-8-ZNNIV-SI | 2 | 07129904874 | Shop at ECS Tuning | |||||
| 13 | ASA-Bolt | M8X35-U2-8.8 | 2 | 07129905417 | $1.91 | Shop at ECS Tuning | ||||
| 14 | Joint sleeve | D=8MM | 4 | 18207546579 | $2.86 | Shop at ECS Tuning | ||||
| 15 | Vibration absorber | 34HZ | 1 | 18107546970 | Shop at ECS Tuning | |||||
| 16 | Collar screw | M8X70 | 1 | 18407540023 | $4.07 | Shop at ECS Tuning | ||||
| 17 | Retaining bracket, right | 1 | 18207536172 | $23.27 | Shop at ECS Tuning | |||||
| 18 | Holding strap left | 1 | 18207536171 | $23.27 | Shop at ECS Tuning | |||||
| 19 | Rubber Ring | 2 | 18207578239 | $21.41 | +core | Shop at ECS Tuning | ||||
| 20 | Hex nut | M12X1,5ZNNIV SI | 2 | 07129904866 | $1.85 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E63 630i Center muffler?
- This technical diagram illustrates the Center muffler within the Exhaust system group for the 6 Series E63 630i produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Center muffler (Part #18107532187).
- Which models use the hardware listed in this Center muffler?
- The hardware and components featured in the Center muffler are specific to the 6 Series E63 630i produced during 2007. These technical specifications ensure that parts like the Center muffler (18107532187) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Center muffler assembly?
- Each item in the Center muffler corresponds to the numbered list below the illustration. For the 6 Series E63 630i, you can identify the Center muffler by locating its position on the schematic, which then links to the official BMW part number 18107532187 for the Exhaust system section.
