Diesel catalyst for BMW 5 Series E60 535d (2005)

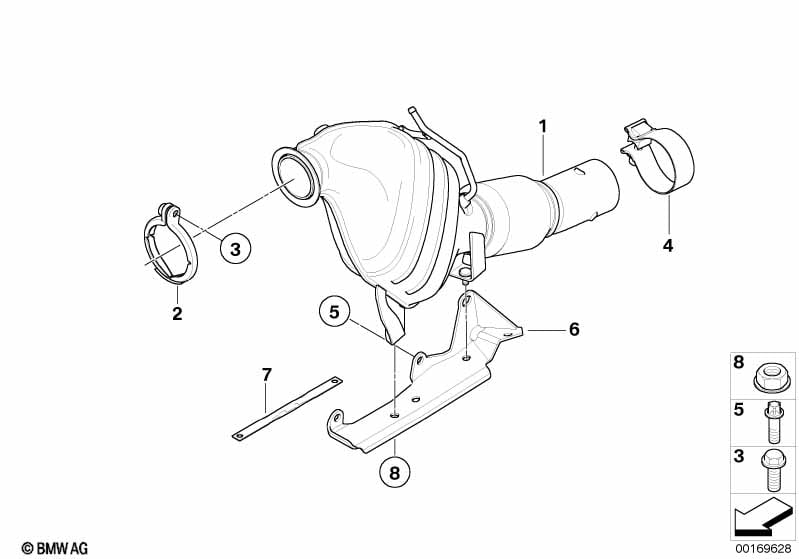

This Diesel catalyst technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 535d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP catalytic conv.close to the engine | EU4 | 1 | 18307795868 | $1391.19 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Screw clamp | 1 | 18308512137 | Shop at ECS Tuning | ||||||
| 02 | Screw clamp | 1 | 18308512137 | Shop at ECS Tuning | ||||||
| 03 | Hex bolt with washer | M8X40-U1-8.8 | 1 | 07119904514 | $0.49 | Shop at ECS Tuning | ||||
| 04 | Muffler clamp | D=75,9 X 31,8MM | 1 | 18307793766 | $15.83 | Shop at ECS Tuning | ||||
| 05 | ASA-Bolt | M6X10-8.8-ZNS3 | 2 | 07129904072 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Holder catalytic converter near engine | 1 | 18207794961 | Shop at ECS Tuning | ||||||
| 07 | Rod | 2 | 18207789884 | Shop at ECS Tuning | ||||||
| 08 | Collar nut | M8-8-SC-ZNNIV | 4 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
