Exhaust system, rear for BMW 5 Series E60 535d (2005)

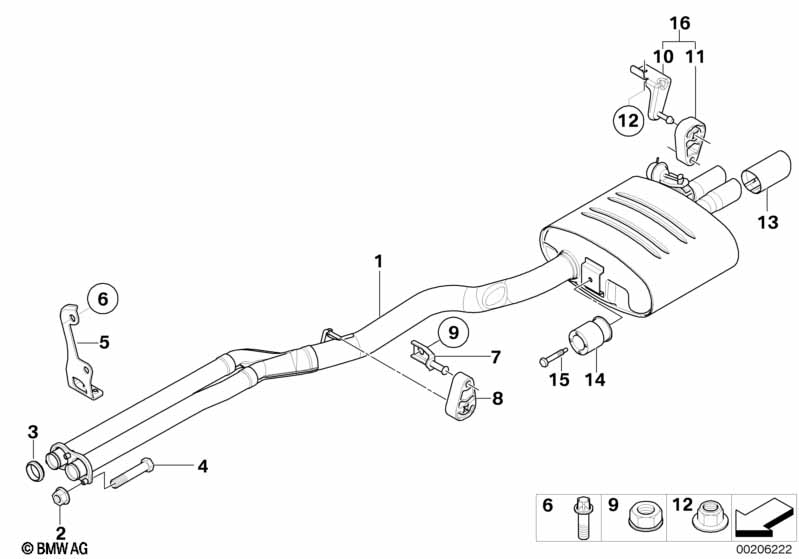

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 535d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear muffler with exhaust flap | 1 | 18307798465 | ENDED | Shop at ECS Tuning | |||||
| 02 | Hex nut | M8-ZNS3 | 3 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| 03 | Gasket ring | 2 | 18307793771 | $17.97 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M8X45-8.8-ZNS3 | 3 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Gearbox support | 1 | 18207789886 | Shop at ECS Tuning | ||||||
| 06 | ASA-Bolt | M6X10-8.8-ZNS3 | 2 | 07129904072 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Rubber mount with bracket | 1 | 18207510997 | $31.43 | ENDED | Shop at ECS Tuning | ||||
| 07 | Bracket | 1 | 18207510992 | $8.07 | Shop at ECS Tuning | |||||
| 08 | Rubber Mounting | 1 | 18207578238 | $16.30 | Shop at ECS Tuning | |||||
| 09 | Hex nut | M12X1,5ZNNIV SI | 1 | 07129904866 | $1.85 | Shop at ECS Tuning | ||||
| 10 | Bracket | 2 | 18307797507 | Shop at ECS Tuning | ||||||
| 11 | Rubber Mounting | 2 | 18207791570 | Shop at ECS Tuning | ||||||
| 12 | Collar nut | M8-8-SC-ZNNIV | 2 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 13 | Tailpipe tip, chrome | 2 | 18307536038 | $60.00 | Shop at ECS Tuning | |||||
| 14 | Vibration absorber | 32 HZ | 1 | 18303413587 | $54.00 | Shop at ECS Tuning | ||||
| 15 | Collar screw | M8X70 | 1 | 18407540023 | $4.07 | Shop at ECS Tuning | ||||
| 16 | Rubber mount with bracket | 2 | 18307791327 | ENDED | Shop at ECS Tuning |
