Diesel particle filter for BMW 5 Series E60 535d (2005)

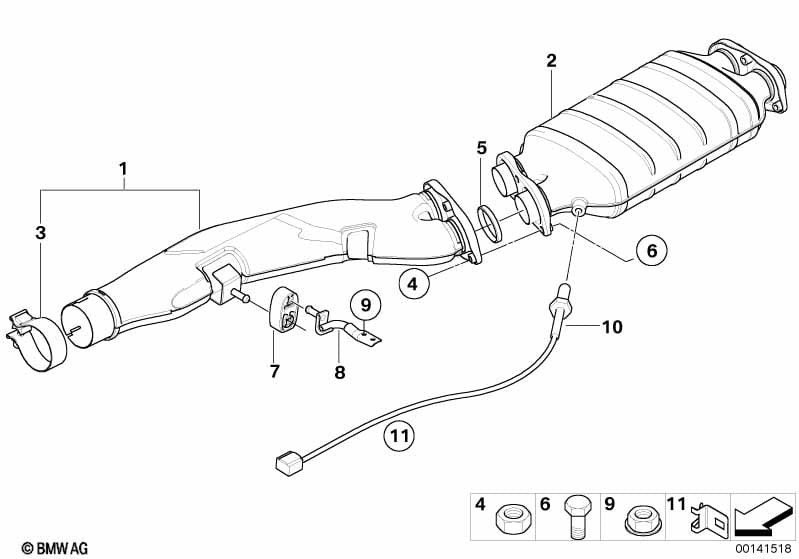

This Diesel particle filter technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 535d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front pipe | 1 | 18307793765 | Shop at ECS Tuning | ||||||
| 02 | RP diesel particulate filter | 1 | 18307793773 | $2515.39 | Shop at ECS Tuning | |||||
| 03 | Muffler clamp | D=75,9 X 31,8MM | 1 | 18307793766 | $15.83 | Shop at ECS Tuning | ||||
| 04 | Hex nut | M8-ZNS3 | 6 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| 05 | Gasket ring | 4 | 18307793771 | $17.97 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M8X40-8.8-ZNS3 | 6 | 07119902910 | $2.05 | Shop at ECS Tuning | ||||
| 07 | Suspension loop | 1 | 18307793793 | Shop at ECS Tuning | ||||||
| 08 | Bracket, front pipe | 1 | 18307793794 | Shop at ECS Tuning | ||||||
| 09 | Collar nut | M8-8-SC-ZNNIV | 2 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 10 | Temperature sensor | L=240 | 1 | 13627809153 | Shop at ECS Tuning | |||||
| 11 | Clip | 1 | 13627789584 | Shop at ECS Tuning |
