Front muffler for BMW 5 Series E61 525i (2007)

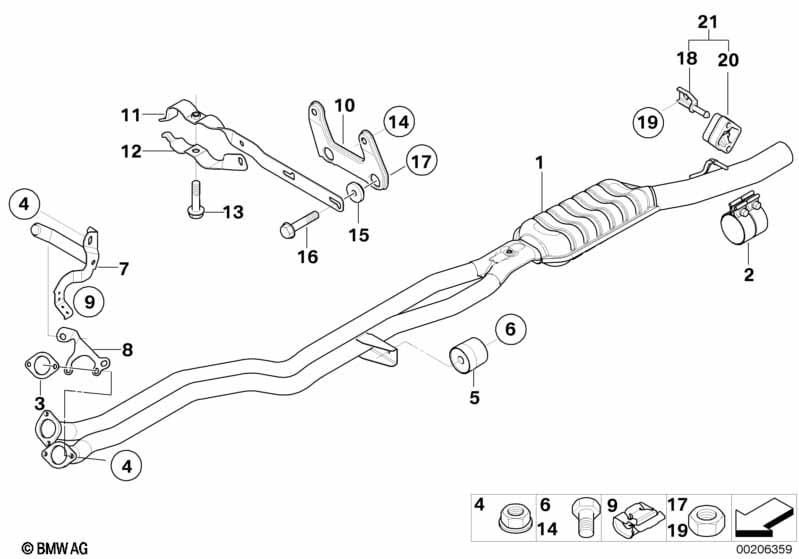

This Front muffler technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exhaust pipes with primary silencer | 1 | 18307541474 | Shop at ECS Tuning | ||||||
| 01 | Exhaust system, cpl. | 1 | 18307544273 | ENDED | Shop at ECS Tuning | |||||
| 02 | Clamping bush | D=70 X 70MM | 1 | 18307560780 | $60.54 | Shop at ECS Tuning | ||||
| 03 | Flat gasket | 2 | 18107549447 | $14.36 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex nut | M10 | 4 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 04 | Hex nut | M10 | 5 | 18307530972 | $1.65 | Shop at ECS Tuning | ||||
| 05 | Vibration absorber | 88HZ | 1 | 18107544260 | Shop at ECS Tuning | |||||
| 06 | Collar screw | M8X70 | 1 | 18407540023 | $4.07 | Shop at ECS Tuning | ||||
| 07 | Support | 1 | 18207562124 | $35.24 | Shop at ECS Tuning | |||||
| 08 | Connection plate | 1 | 18207535230 | $10.71 | Shop at ECS Tuning | |||||
| 09 | Cable clamp | 1 | 11787547198 | $1.25 | Shop at ECS Tuning | |||||
| 10 | Bracket | 1 | 18207540176 | $17.63 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 10 | Bracket | 6HP19 | 1 | 18207521346 | $22.44 | Shop at ECS Tuning | ||||
| 11 | Bracket, front pipe | I-GETRIEBE | 1 | 18207540177 | $11.66 | Shop at ECS Tuning | ||||
| 11 | Bracket, front pipe | 1 | 18207540179 | $23.27 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 11 | Bracket, front pipe | 1 | 18207521347 | $23.27 | Shop at ECS Tuning | |||||
| 12 | Clamp | 1 | 18207541991 | $10.62 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 12 | Clamp | 1 | 18207521348 | $7.47 | Shop at ECS Tuning | |||||
| 13 | Torx screw with collar | M8X49 | 1 | 18207544250 | $4.20 | Shop at ECS Tuning | ||||
| 13 | Torx screw with collar | M8X54 | 1 | 18207562048 | $3.57 | Shop at ECS Tuning | ||||
| 14 | ASA-Bolt | M8X35-U2-8.8 | 2 | 07129905417 | $1.91 | Shop at ECS Tuning | ||||
| 15 | Joint sleeve | D=8MM | 4 | 18207546579 | $2.86 | Shop at ECS Tuning | ||||
| 18 | Bracket | 1 | 18207510992 | $8.07 | Shop at ECS Tuning | |||||
| 19 | Hex nut | M12X1,5ZNNIV SI | 1 | 07129904866 | $1.85 | Shop at ECS Tuning | ||||
| 20 | Rubber Mounting | 1 | 18207578238 | $16.30 | Shop at ECS Tuning | |||||
| 21 | Rubber mount with bracket | 1 | 18207510997 | $31.43 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E61 525i Front muffler?
- This technical diagram illustrates the Front muffler within the Exhaust system group for the 5 Series E61 525i produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Exhaust pipes with primary silencer (Part #18307541474).
- Which models use the hardware listed in this Front muffler?
- The hardware and components featured in the Front muffler are specific to the 5 Series E61 525i produced during 2007. These technical specifications ensure that parts like the Exhaust pipes with primary silencer (18307541474) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front muffler assembly?
- Each item in the Front muffler corresponds to the numbered list below the illustration. For the 5 Series E61 525i, you can identify the Exhaust pipes with primary silencer by locating its position on the schematic, which then links to the official BMW part number 18307541474 for the Exhaust system section.
