Exhaust system, rear for BMW 5 Series E60 LCI 523i (2009)

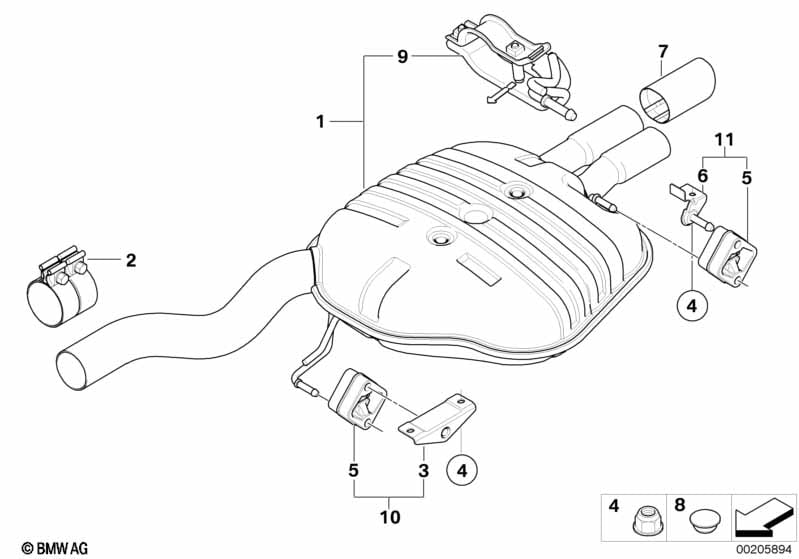

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear muffler | 1 | 18307535104 | $658.67 | Shop at ECS Tuning | |||||
| 02 | Clamping bush | D=70 X 70MM | 1 | 18307560780 | $60.54 | Shop at ECS Tuning | ||||
| 03 | Bracket | 1 | 18307521388 | $17.63 | Shop at ECS Tuning | |||||
| 04 | Collar nut | M8-8-SC-ZNNIV | 3 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 05 | Rubber Mounting | 2 | 18207578238 | $16.30 | Shop at ECS Tuning | |||||
| 06 | Bracket | 1 | 18307525633 | $11.66 | Shop at ECS Tuning | |||||
| 07 | Tailpipe tip | 2 | 18307534036 | $60.00 | Shop at ECS Tuning | |||||
| 08 | Blind plug | D=16MM | 1 | 51718257286 | $0.40 | Shop at ECS Tuning | ||||
| 09 | REAR SILENCER BRACKET, rear | 1 | 18307535411 | $107.03 | Shop at ECS Tuning | |||||
| 11 | Rubber mount with bracket | 1 | 18307525615 | $30.65 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 LCI 523i Exhaust system, rear?
- This technical diagram illustrates the Exhaust system, rear within the Exhaust system group for the 5 Series E60 LCI 523i produced during 2009. It provides a detailed exploded view of the components, identifying key parts such as the Rear muffler (Part #18307535104).
- Which models use the hardware listed in this Exhaust system, rear?
- The hardware and components featured in the Exhaust system, rear are specific to the 5 Series E60 LCI 523i produced during 2009. These technical specifications ensure that parts like the Rear muffler (18307535104) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Exhaust system, rear assembly?
- Each item in the Exhaust system, rear corresponds to the numbered list below the illustration. For the 5 Series E60 LCI 523i, you can identify the Rear muffler by locating its position on the schematic, which then links to the official BMW part number 18307535104 for the Exhaust system section.
