Exhaust system, rear for BMW 3 Series E90 320d (2007)

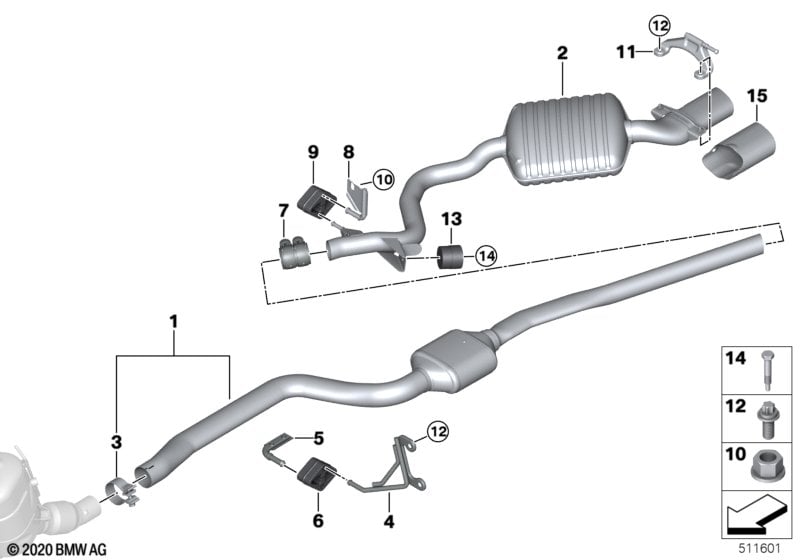

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front muffler | 1 | 18307793624 | Shop at ECS Tuning | ||||||
| For vehicles with EU3 exhaust emissions standard |
S169A=Yes |
|||||||||
| 01 | Front muffler | 1 | 18307795009 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Diesel particle filter |
S200A=No |
|||||||||
| 02 | Rear muffler | 1 | 18307795008 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Installation kit for rear silencer | VALUE PARTS | 1 | 18302455263 | Shop at ECS Tuning | |||||
| -- | MINI F54 catalogue 2017 | 2017 SÜDAFRIKA | 1 | 01202455203 | Shop at ECS Tuning | |||||
| For vehicles with Diesel particle filter |
S200A=Yes |
|||||||||
| 02 | Rear muffler | 1 | 18307793622 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Installation kit for rear silencer | VALUE PARTS | 1 | 18302455263 | Shop at ECS Tuning | |||||
| -- | MINI F54 catalogue 2017 | 2017 SÜDAFRIKA | 1 | 01202455203 | Shop at ECS Tuning | |||||
| 03 | Muffler clamp | D=66,6 X 31,8MM | 1 | 18308506992 | Shop at ECS Tuning | |||||
| For vehicles with EU3 exhaust emissions standard |
S169A=Yes |
|||||||||
| 03 | Muffler clamp | D=60,6 X 31,8MM | 1 | 18307793025 | Shop at ECS Tuning | |||||
| 04 | Gearbox support | 1 | 18207795015 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 04 | Gearbox support | 1 | 18207795016 | Shop at ECS Tuning | ||||||
| 05 | Holder | 1 | 18207795017 | Shop at ECS Tuning | ||||||
| 06 | Rubber Mounting | 1 | 18207811797 | Shop at ECS Tuning | ||||||
| 07 | Clamping bush | D=55 X 70MM | 1 | 18307560778 | $34.61 | Shop at ECS Tuning | ||||
| 08 | Holder | 1 | 18207549977 | $22.83 | Shop at ECS Tuning | |||||
| 09 | Rubber Mounting | 3 | 18208511880 | Shop at ECS Tuning | ||||||
| 10 | Hex nut | M12X1,5ZNNIV SI | 1 | 07129904866 | $1.85 | Shop at ECS Tuning | ||||
| 11 | Holder | 1 | 18307795750 | Shop at ECS Tuning | ||||||
| 12 | ASA-Bolt | M8X20-U1-8.8 | 4 | 07129904559 | $0.71 | Shop at ECS Tuning | ||||
| 12 | Torx-bolt with washer | ASA M8X25 | 4 | 51217062145 | $1.17 | Shop at ECS Tuning | ||||
| For vehicles with Diesel particle filter |
S200A=No |
|||||||||
| 13 | Vibration absorber | 32 HZ | 1 | 18107506145 | $64.62 | Shop at ECS Tuning | ||||
| For vehicles with Diesel particle filter |
S200A=Yes |
|||||||||
| 13 | Vibration absorber | 28 HZ | 1 | 18303414653 | Shop at ECS Tuning | |||||
| 14 | Collar screw | M8X70 | 1 | 18407540023 | $4.07 | Shop at ECS Tuning | ||||
| For vehicles with M Sports package and Diesel particle filter |
P337A=Yes S200A=Yes |
|||||||||
| 15 | Tailpipe tip, chrome | 1 | 82120398333 | $54.00 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
