Exhaust manifold with catalyst for BMW 5 Series E60 540i (2007)

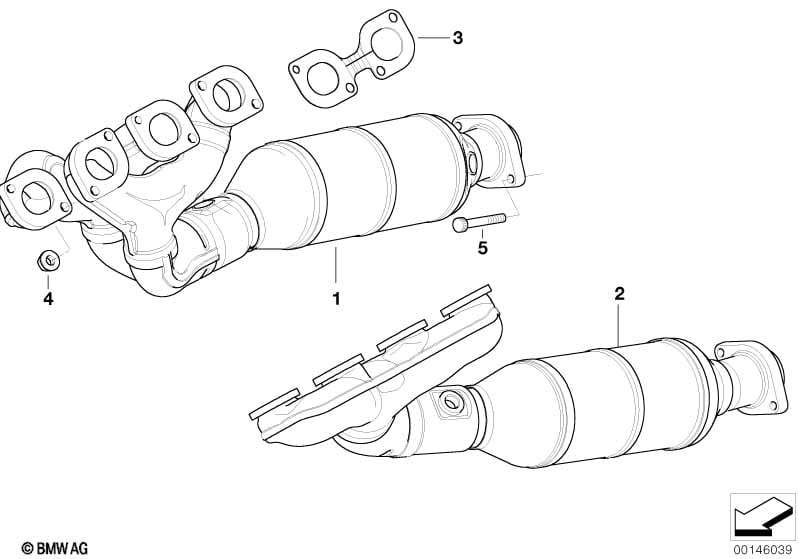

This Exhaust manifold with catalyst technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP exhaust manifold with catalytic conv | ZYL. 1-4 (EU4) | 1 | 18407548917 | Shop at ECS Tuning | |||||
| 02 | RP exhaust manifold with catalytic conv | ZYL. 5-8 (EU4) | 1 | 18407548918 | Shop at ECS Tuning | |||||
| 03 | Gasket Asbestos Free | 4 | 11627505789 | $10.94 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Collar nut | M8 | 16 | 11627509731 | $4.18 | Shop at ECS Tuning | ||||
| 04 | Collar nut | M8 | 16 | 11627509731 | $4.18 | Shop at ECS Tuning | ||||
| 05 | Knurled bolt | M8X50 | 4 | 18407536175 | $6.52 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 540i Exhaust manifold with catalyst?
- This technical diagram illustrates the Exhaust manifold with catalyst within the Exhaust system group for the 5 Series E60 540i produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the RP exhaust manifold with catalytic conv (Part #18407548917).
- Which models use the hardware listed in this Exhaust manifold with catalyst?
- The hardware and components featured in the Exhaust manifold with catalyst are specific to the 5 Series E60 540i produced during 2007. These technical specifications ensure that parts like the RP exhaust manifold with catalytic conv (18407548917) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Exhaust manifold with catalyst assembly?
- Each item in the Exhaust manifold with catalyst corresponds to the numbered list below the illustration. For the 5 Series E60 540i, you can identify the RP exhaust manifold with catalytic conv by locating its position on the schematic, which then links to the official BMW part number 18407548917 for the Exhaust system section.
