Lambda Probe Fixings for BMW 5 Series E60 540i

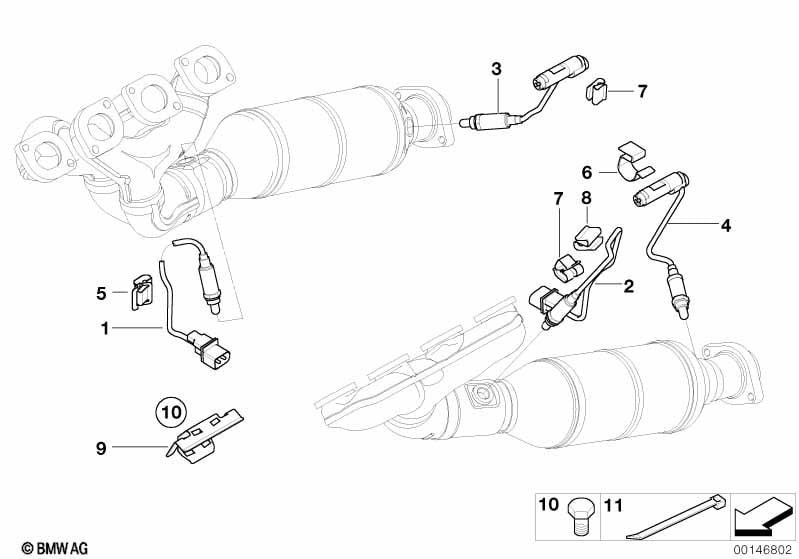

This Lambda Probe Fixings technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 540i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lambda probe, black | L= 950MM | 1 | 11787540167 | $215.65 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission or Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 01 | Lambda probe, black | L= 550MM | 1 | 11787539123 | Shop at ECS Tuning | |||||
| 02 | Lambda probe, grey | L= 550MM | 1 | 11787540168 | $215.65 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission or Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 02 | Lambda probe, grey | L= 620MM | 1 | 11787539124 | $215.65 | Shop at ECS Tuning | ||||
| 03 | Lambda probe, black | L= 325MM | 1 | 11787539125 | $215.65 | Shop at ECS Tuning | ||||
| 04 | Lambda probe, grey | L= 450MM | 1 | 11787539126 | $215.65 | Shop at ECS Tuning | ||||
| 05 | Cable holder | 2 | 05/2006 | 07146976165 | $0.66 | Shop at ECS Tuning | ||||
| 05 | Cable clamp | 2 | 05/2006 | 11787549563 | $1.04 | Shop at ECS Tuning | ||||
| 05 | Clip | 15-19 | 2 | 08/2024 | 07147568538 | $3.49 | Shop at ECS Tuning | |||
| 06 | Cable clamp | D=19-24/B=5 | 2 | 11787548951 | $1.12 | Shop at ECS Tuning | ||||
| 07 | Fixing clamp | A=3,5 - 6,0MM | 5 | 02/2006 | 07147547239 | $0.58 | Shop at ECS Tuning | |||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 08 | Clip | 1 | 12521437136 | $0.63 | Shop at ECS Tuning | |||||
| For vehicles with Sequential manual transmission (SMG) |
S206A=Yes |
|||||||||
| 08 | Cable clamp | 1 | 05/2006 | 11787549563 | $1.04 | Shop at ECS Tuning | ||||
| 08 | Clip | 15-19 | 1 | 08/2024 | 07147568538 | $3.49 | Shop at ECS Tuning | |||
| 09 | Holder | 1 | 12527524528 | $7.57 | Shop at ECS Tuning | |||||
| 10 | Hex bolt | M6X16-8.8-ZNS3 | 2 | 07119904371 | $0.16 | Shop at ECS Tuning | ||||
| 11 | Cable tie | L=200MM/B=3,6MM | 2 | 61131367599 | $0.43 | Shop at ECS Tuning | ||||
