Center muffler for BMW 5 Series E60 LCI 530d (2005)

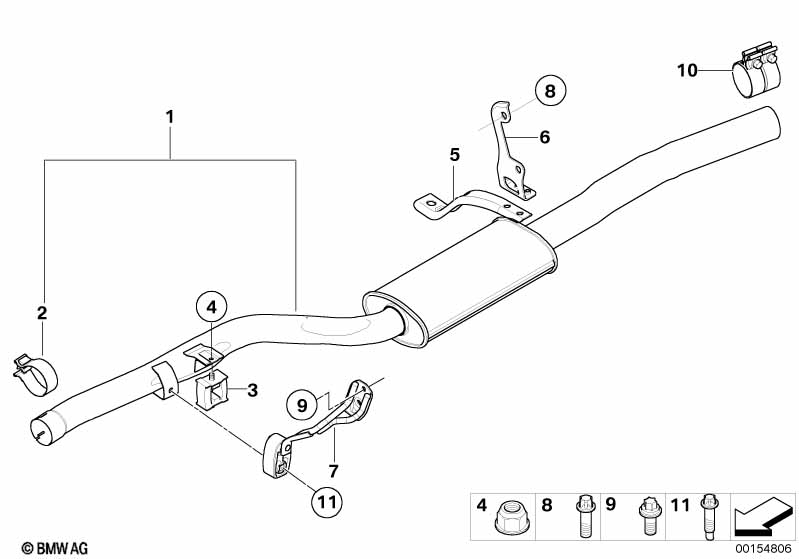

This Center muffler technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Center muffler | 1 | 18307798072 | Shop at ECS Tuning | ||||||
| 02 | Muffler clamp | D=66,6 X 31,8MM | 1 | 18308506992 | Shop at ECS Tuning | |||||
| 03 | Rubber Mounting | 1 | 18211437236 | Shop at ECS Tuning | ||||||
| 04 | Collar nut | M8-8-SC-ZNNIV | 1 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 05 | Bracket | 1 | 18307791260 | Shop at ECS Tuning | ||||||
| 06 | Gearbox support | 1 | 18207789885 | Shop at ECS Tuning | ||||||
| For vehicles with Sport automatic transmission or Automatic transmission |
S2TBA=Yes S205A=Yes |
|||||||||
| 06 | Gearbox support | 1 | 18207789886 | Shop at ECS Tuning | ||||||
| 08 | ASA-Bolt | M6X10-8.8-ZNS3 | 2 | 07129904072 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Clamping bush | D=70 X 70MM | 1 | 18307560780 | $60.54 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 LCI 530d Center muffler?
- This technical diagram illustrates the Center muffler within the Exhaust system group for the 5 Series E60 LCI 530d produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Center muffler (Part #18307798072).
- Which models use the hardware listed in this Center muffler?
- The hardware and components featured in the Center muffler are specific to the 5 Series E60 LCI 530d produced during 2005. These technical specifications ensure that parts like the Center muffler (18307798072) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Center muffler assembly?
- Each item in the Center muffler corresponds to the numbered list below the illustration. For the 5 Series E60 LCI 530d, you can identify the Center muffler by locating its position on the schematic, which then links to the official BMW part number 18307798072 for the Exhaust system section.
