Front muffler for BMW 3 Series E91 330d (2008)

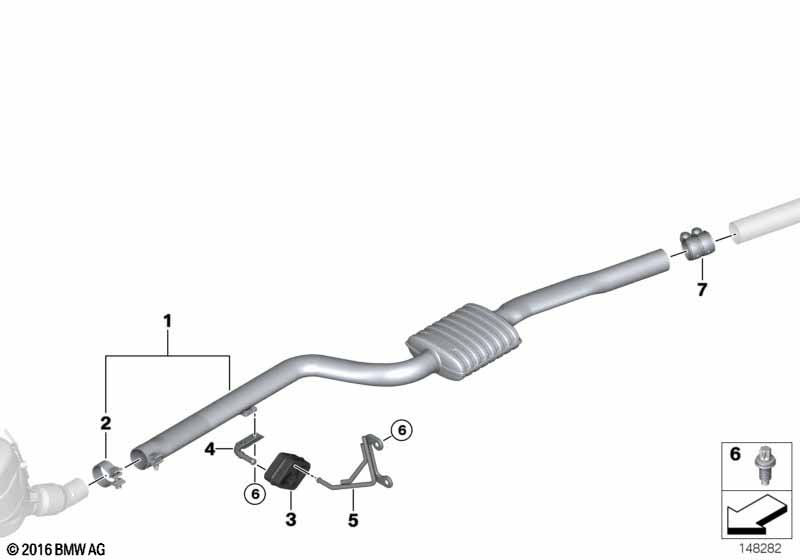

This Front muffler technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with EU3 exhaust emissions standard |
S169A=No |
|||||||||
| 01 | Front muffler | 1 | 18307796019 | Shop at ECS Tuning | ||||||
| For vehicles with EU3 exhaust emissions standard |
S169A=Yes |
|||||||||
| 01 | Front muffler | 1 | 18307798354 | ENDED | Shop at ECS Tuning | |||||
| 02 | Muffler clamp | D=66,6 X 31,8MM | 1 | 18308506992 | Shop at ECS Tuning | |||||
| 03 | Rubber Mounting | 1 | 18207811797 | Shop at ECS Tuning | ||||||
| 04 | Holder | 1 | 18207795017 | Shop at ECS Tuning | ||||||
| 05 | Gearbox support | 1 | 18207795985 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 05 | Gearbox support | 1 | 18207795986 | Shop at ECS Tuning | ||||||
| 06 | ASA-Bolt | M8X20-U1-8.8 | 4 | 07129904559 | $0.71 | Shop at ECS Tuning | ||||
| 06 | Torx-bolt with washer | ASA M8X25 | 2 | 51217062145 | $1.17 | Shop at ECS Tuning | ||||
| 07 | Clamping bush | D=65 X 70MM | 1 | 18307536426 | $50.38 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
