Vacuum control, exhaust flap for BMW 5 Series E60 535d (2005)

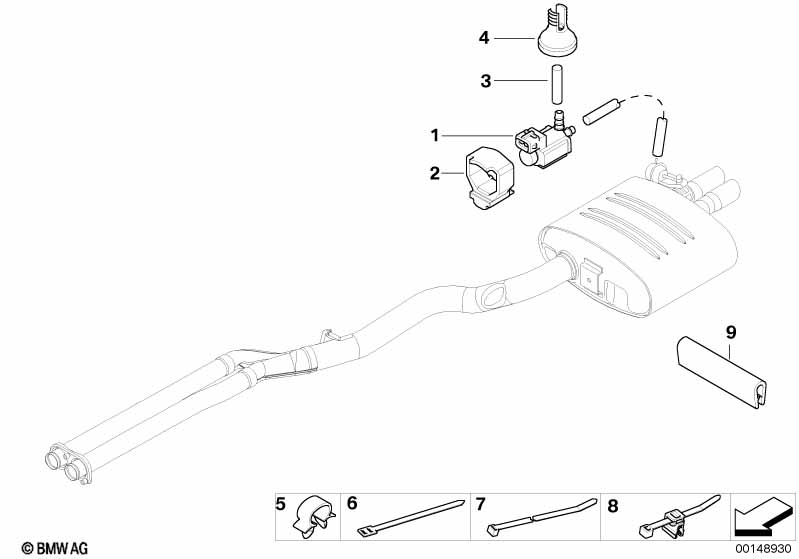

This Vacuum control, exhaust flap technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 535d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Electr.valve | 1 | 11747810831 | $46.70 | Shop at ECS Tuning | |||||
| 02 | Rubber Mounting | 1 | 18307551543 | $3.62 | Shop at ECS Tuning | |||||
| 03 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 04 | Cable grommet | 1 | 61131361918 | $1.58 | Shop at ECS Tuning | |||||
| 05 | Tubing support | D=10,8MM | 3 | 64111364073 | $0.57 | Shop at ECS Tuning | ||||
| 06 | Cable tie | 3 | 18307535081 | $1.68 | Shop at ECS Tuning | |||||
| 07 | Cable tie | L=200MM/B=3,6MM | 1 | 61131367599 | $0.43 | Shop at ECS Tuning | ||||
| 08 | Cable strap with bracket | L=200MM | 1 | 61136918644 | $0.92 | Shop at ECS Tuning | ||||
| 09 | Edge protection | 1 | 51721866416 | $7.25 | Shop at ECS Tuning |
