Exhaust system, rear for BMW 5 Series E60 550i

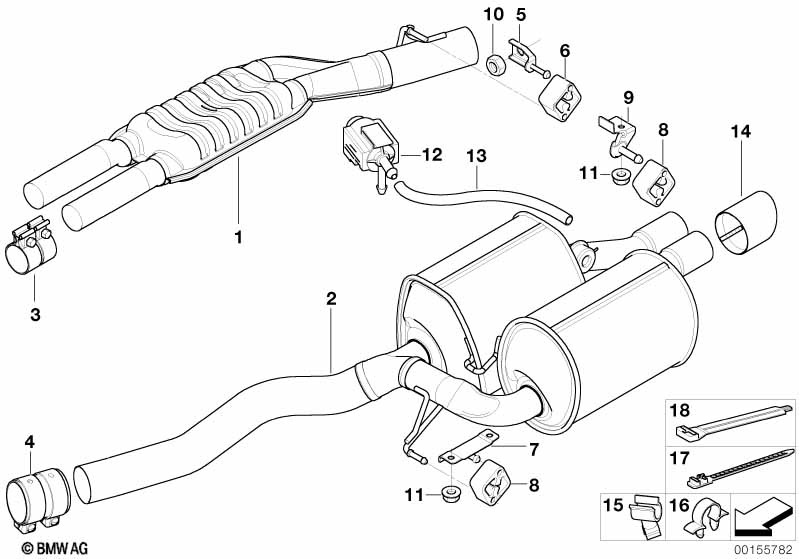

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 550i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Center muffler | 1 | 18307544263 | $499.44 | Shop at ECS Tuning | |||||
| 02 | Rear muffler | 1 | 18307544264 | $1063.65 | Shop at ECS Tuning | |||||
| 03 | Clamping bush | D=60 X 70MM | 2 | 18307560779 | $34.61 | Shop at ECS Tuning | ||||
| 04 | Clamping bush | D=85 X 90MM | 1 | 18307560782 | $113.93 | Shop at ECS Tuning | ||||
| 05 | Bracket | 1 | 18207510992 | $8.07 | Shop at ECS Tuning | |||||
| 06 | Rubber Mounting | 1 | 18207833206 | $16.30 | Shop at ECS Tuning | |||||
| 07 | Bracket | 1 | 18307521388 | $17.63 | Shop at ECS Tuning | |||||
| 08 | Rubber Mounting | 2 | 18207833206 | $16.30 | Shop at ECS Tuning | |||||
| 09 | Bracket | 1 | 18307525633 | $11.66 | Shop at ECS Tuning | |||||
| 10 | Hex nut | M12X1,5ZNNIV SI | 1 | 07129904866 | $1.85 | Shop at ECS Tuning | ||||
| 11 | Collar nut | M8-8-SC-ZNNIV | 5 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 12 | Electr.valve | 1 | 11747810831 | $46.70 | Shop at ECS Tuning | |||||
| 13 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 14 | Tailpipe tip, chrome | 2 | 18307536038 | $60.00 | Shop at ECS Tuning | |||||
| 15 | Holder | 1 | 61131365675 | $1.13 | Shop at ECS Tuning | |||||
| 16 | Tubing support | D=10,8MM | 2 | 64111364073 | $0.57 | Shop at ECS Tuning | ||||
| 17 | Cable tie | 3 | 18307535081 | $1.68 | Shop at ECS Tuning | |||||
| 18 | Cable tie | L=200MM/B=3,6MM | 1 | 61131367599 | $0.43 | Shop at ECS Tuning |
