Retrofit diesl particle fltr unregulated for BMW 3 Series E46 320d (2001)

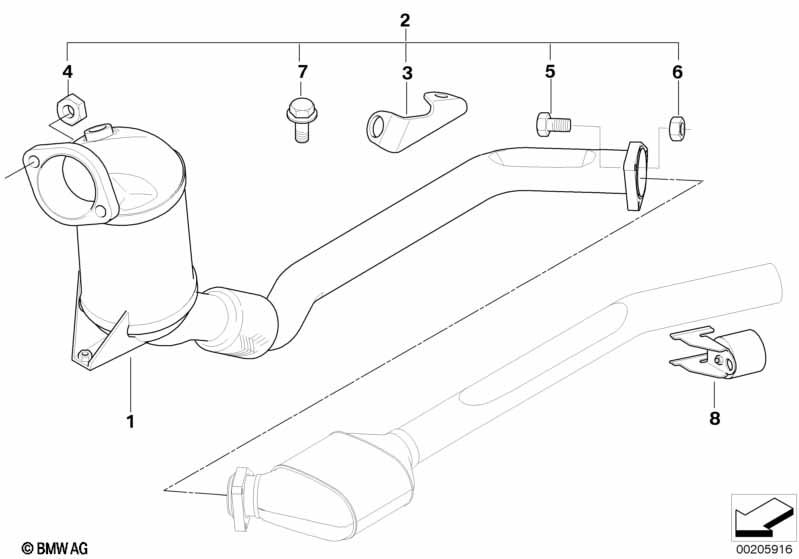

This Retrofit diesl particle fltr unregulated technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. |
|||||||||
| For vehicles with Rape methyl ester version (RME) and Automatic transmission Not for vehicles with emissions standard EU4 |
S201A=No S205A=Yes |
|||||||||
| 01 | Retrofit particle filter E46-M47 | E46-M47 EURO3 | 1 | 18100413056 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Installation kit, open system, DPF | 1 | 18100412761 | Shop at ECS Tuning | ||||||
| can only be inst.w/special tool 18 0 100 | ||||||||||
| -- | Vibration damper set | DPF | 1 | 18102150914 | ENDED | Shop at ECS Tuning | ||||
| can only be inst.w/special tool 18 0 100 | ||||||||||
| For vehicles with Rape methyl ester version (RME) and Automatic transmission Only for vehicles with EURO4 emissions control can only be inst.w/special tool 18 0 100 |
S201A=No S205A=Yes |
|||||||||
| 01 | Retrofit particle filter | E46-M47 | 1 | 18100413058 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Installation kit, open system, DPF | 1 | 18100412761 | Shop at ECS Tuning | ||||||
| -- | Vibration damper set | DPF | 1 | 18102150914 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Rape methyl ester version (RME) and Automatic transmission Not for vehicles with emissions standard EU4 |
S201A=No S205A=No |
|||||||||
| 01 | Retrofit particle filter E46-M47 | E46-M47 EURO3 | 1 | 18100413056 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Holder catalytic converter near engine | 1 | 18207789045 | Shop at ECS Tuning | ||||||
| can only be inst.w/special tool 18 0 100 | ||||||||||
| -- | Installation kit, open system, DPF | 1 | 18100412759 | Shop at ECS Tuning | ||||||
| can only be inst.w/special tool 18 0 100 | ||||||||||
| -- | Vibration damper set | DPF | 1 | 18102150914 | ENDED | Shop at ECS Tuning | ||||
| can only be inst.w/special tool 18 0 100 | ||||||||||
| For vehicles with Rape methyl ester version (RME) and Automatic transmission Only for vehicles with EURO4 emissions control can only be inst.w/special tool 18 0 100 |
S201A=No S205A=No |
|||||||||
| 01 | Retrofit particle filter | E46-M47 | 1 | 18100413058 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Installation kit, open system, DPF | 1 | 18100412759 | Shop at ECS Tuning | ||||||
| -- | Vibration damper set | DPF | 1 | 18102150914 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Rape methyl ester version (RME) and Automatic transmission |
S201A=No S205A=Yes |
|||||||||
| 02 | Installation kit, open system, DPF | 1 | 18100412761 | Shop at ECS Tuning | ||||||
| For vehicles with Rape methyl ester version (RME) and Automatic transmission |
S201A=No S205A=No |
|||||||||
| 02 | Installation kit, open system, DPF | 1 | 18100412759 | Shop at ECS Tuning | ||||||
| For vehicles with Rape methyl ester version (RME) and Automatic transmission |
S201A=No S205A=Yes |
|||||||||
| 03 | Reinforcing holder PM-KAT | 1 | 18100413060 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Rape methyl ester version (RME) and Automatic transmission |
S201A=No S205A=No |
|||||||||
| 03 | Reinforcing holder PM-KAT | 1 | 18100413061 | ENDED | Shop at ECS Tuning | |||||
| 04 | Hex nut | M10 | 2 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M8X50 | 3 | 07119904533 | $2.84 | Shop at ECS Tuning | ||||
| 06 | Hex nut | M8 SW12 | 3 | 11621744323 | $0.85 | Shop at ECS Tuning | ||||
| 07 | Hexagon screw with flange | M10X35-10.9ZNS3 | 8 | 31106772199 | $1.61 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
S205A=No |
|||||||||
| 08 | Vibration damper set | DPF | 1 | 18102150914 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 08 | Vibration damper set | DPF | 1 | 18102150914 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
