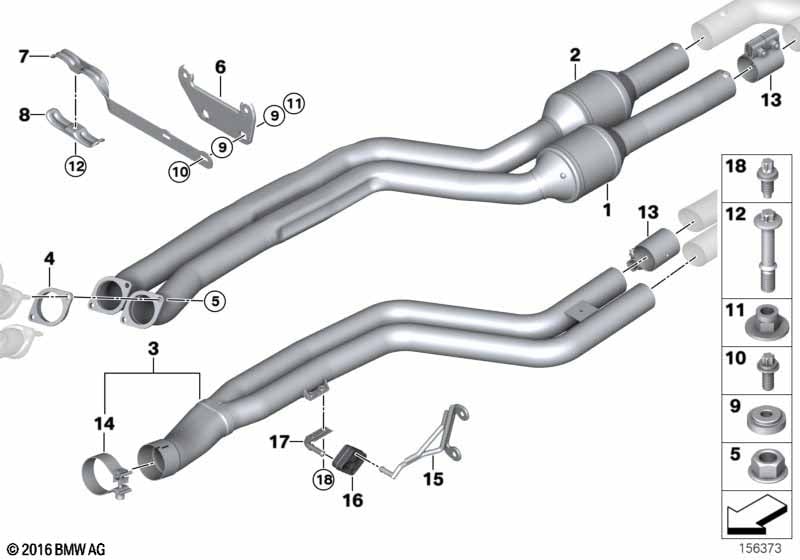

Catalytic converter/front silencer for BMW 3 Series E93 LCI 335i (2013)
This Catalytic converter/front silencer technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 LCI 335i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | Flat gasket | 2 | 18307553603 | $18.21 | Shop at ECS Tuning | |||||
| 05 | Hex nut wiht flange | M8 | 4 | 18307620549 | Shop at ECS Tuning | |||||
| 06 | Bracket | 1 | 18207562612 | $29.05 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 06 | Bracket | 6HP19 | 1 | 18207521602 | $28.63 | Shop at ECS Tuning | ||||
| 07 | Bracket, front pipe | 1 | 18207553604 | $34.59 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 07 | Bracket, front pipe | 1 | 18207553605 | $34.59 | Shop at ECS Tuning | |||||
| 08 | Clamp | 1 | 18207553607 | $16.07 | Shop at ECS Tuning | |||||
| 09 | Joint sleeve | D=8MM | 4 | 18207546579 | $2.86 | Shop at ECS Tuning | ||||
| 10 | Star-socket screw | M8X35 | 2 | 07119907865 | Shop at ECS Tuning | |||||
| 10 | ASA-Bolt | M8X20-U1-8.8 | 2 | 07129904559 | $0.71 | Shop at ECS Tuning | ||||
| 12 | Torx screw with collar | M8X49 | 1 | 18207544250 | $4.20 | Shop at ECS Tuning | ||||
