Retrofit diesl particle fltr unregulated for BMW 5 Series E39 530d

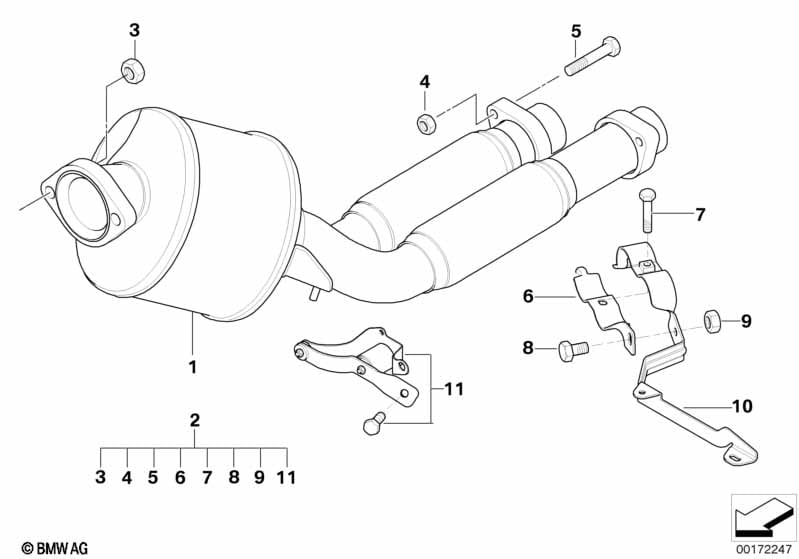

This Retrofit diesl particle fltr unregulated technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Rape methyl ester version (RME) Not for vehicles with emissions standard EURO2 Exhaust mount (Pos.10) must also be ordered! |
S201A=No |
|||||||||
| 01 | Retrofit particle filter E39 M57 EU3 | E39-M57 EU3 | 1 | 18100418187 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Installation kit, open system, DPF | E39 - M57 EURO3 | 1 | 18100428560 | ENDED | Shop at ECS Tuning | ||||
| 02 | Installation kit, open system, DPF | E39 - M57 EURO3 | 1 | 18100428560 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hex nut | M10 | 2 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 04 | Hex nut | M8 SW12 | 4 | 11621744323 | $0.85 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M8X55-8.8 | 4 | 07119902957 | $5.27 | Shop at ECS Tuning | ||||
| 06 | Support shackle | 1 | 18212247983 | Shop at ECS Tuning | ||||||
| 07 | Hex bolt | M8X50 | 1 | 07119904533 | $2.84 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M8X16-10.9-PHR | 1 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 09 | Collar nut | M8-8-SC-ZNNIV | 1 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 10 | Exhaust support | 1 | 12/2002 | 18212247980 | $13.73 | Shop at ECS Tuning | ||||
| 10 | Exhaust support | 1 | 12/2002 | 18217785901 | Shop at ECS Tuning | |||||
| 11 | Holder catalytic converter near engine | 1 | 18202249723 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
