Exhaust system, rear for BMW 3 Series E93 LCI 325i

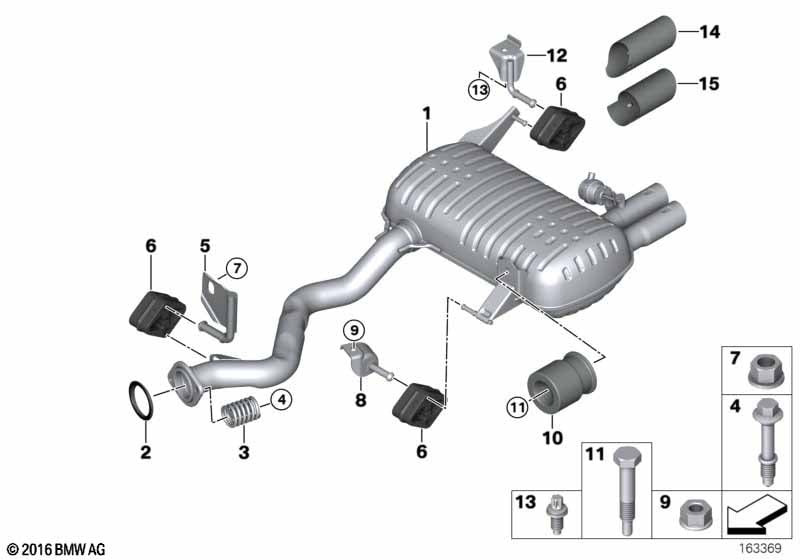

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 LCI 325i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear muffler | 1 | 18307573342 | Shop at ECS Tuning | ||||||
| 02 | Gasket ring | 1 | 18117553130 | $26.38 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex screw with collar | M10X67 | 2 | 18307561670 | $3.20 | Shop at ECS Tuning | ||||
| -- | Spiral spring | 2 | 18307790610 | $10.62 | Shop at ECS Tuning | |||||
| 03 | Spiral spring | 2 | 18307790610 | $10.62 | Shop at ECS Tuning | |||||
| 04 | Hex screw with collar | M10X67 | 2 | 18307561670 | $3.20 | Shop at ECS Tuning | ||||
| 05 | Holder | 1 | 18207549977 | $22.83 | Shop at ECS Tuning | |||||
| 06 | Rubber Mounting | 3 | 18207590154 | Shop at ECS Tuning | ||||||
| 07 | Hex nut | M12X1,5ZNNIV SI | 1 | 07129904866 | $1.85 | Shop at ECS Tuning | ||||
| 08 | Holder | 1 | 18307526848 | $17.63 | Shop at ECS Tuning | |||||
| 09 | Flange nut | M8 | 1 | 07143413174 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Vibration absorber | 32 HZ | 1 | 18303413587 | $54.00 | Shop at ECS Tuning | ||||
| 11 | Collar screw | M8X70 | 1 | 18407540023 | $4.07 | Shop at ECS Tuning | ||||
| 12 | Holder | 1 | 18207526850 | $22.83 | Shop at ECS Tuning | |||||
| 13 | Torx-bolt with washer | ASA M8X25 | 1 | 51217062145 | $1.17 | Shop at ECS Tuning | ||||
| 14 | Tailpipe end piece, alu-look | 1 | 18307553642 | $54.00 | Shop at ECS Tuning | |||||
| 15 | Tailpipe end piece, alu-look | 1 | 18307553641 | $54.00 | Shop at ECS Tuning | |||||
