Exhaust manifold with catalyst for BMW 5 Series E60 LCI 520i (2008)

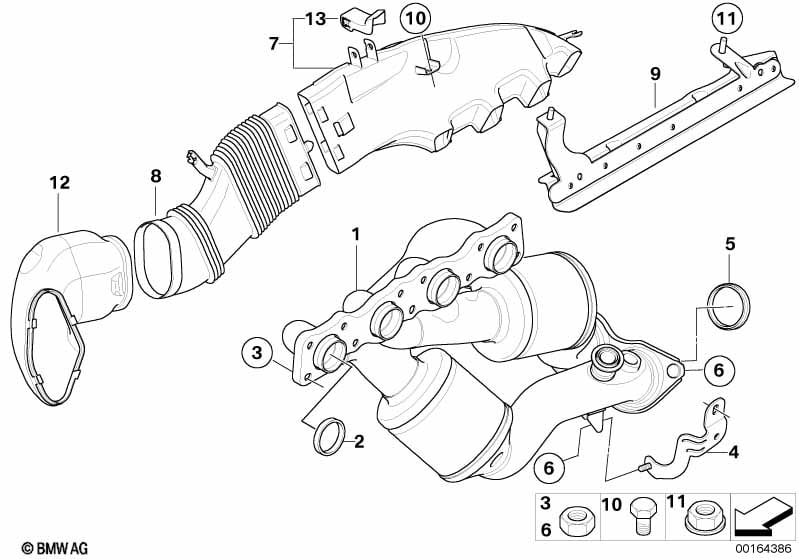

This Exhaust manifold with catalyst technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP exhaust manifold with catalytic conv | 1 | 18407571489 | Shop at ECS Tuning | ||||||
| 02 | Gasket ring | 4 | 18407530606 | $5.93 | Shop at ECS Tuning | |||||
| 03 | Hex nut | 11 | 11721437202 | $0.72 | Shop at ECS Tuning | |||||
| 04 | Holder | 1 | 18207571501 | Shop at ECS Tuning | ||||||
| 05 | Gasket ring | 2 | 18307571894 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Hex nut wiht flange | M8 | 4 | 18307620549 | Shop at ECS Tuning | |||||
| 06 | Hex nut wiht flange | M8 | 4 | 18307620549 | Shop at ECS Tuning | |||||
| 07 | Manifold cooling gallery | 1 | 18407571466 | ENDED | Shop at ECS Tuning | |||||
| 08 | Rubber boot | 1 | 18407571467 | Shop at ECS Tuning | ||||||
| 09 | Bracket, manifold cooling gallery | 1 | 18407571679 | ENDED, +core | Shop at ECS Tuning | |||||
| 10 | Hex bolt | M6X18-8.8-ZNS3 | 2 | 07119904358 | Shop at ECS Tuning | |||||
| 11 | Hex nut with plate | AM6-8-ZNNIV SI | 2 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 12 | Intake duct | 1 | 13717790057 | $34.20 | Shop at ECS Tuning | |||||
| 13 | Hook | 1 | 18407562126 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
