Exhaust system, rear for BMW 5 Series E60 LCI 520i (2008)

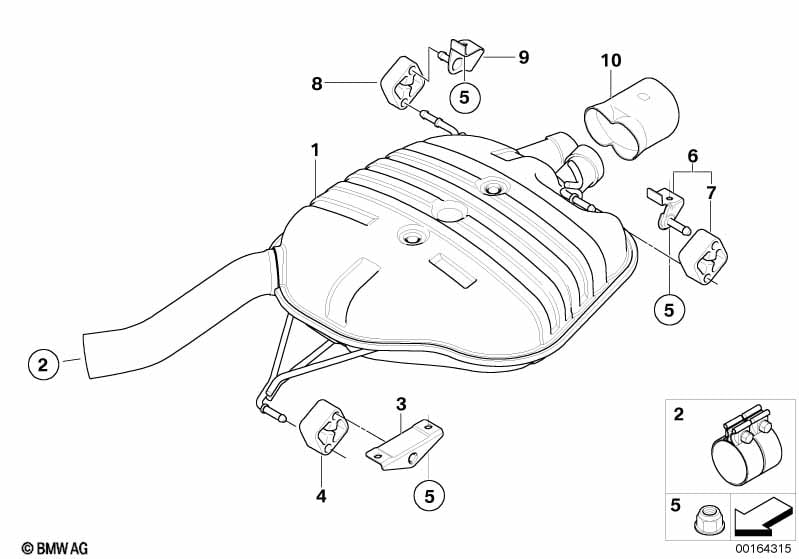

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear muffler | 1 | 18307571477 | Shop at ECS Tuning | ||||||
| 02 | Clamping bush | D=65 X 70MM | 1 | 18307536426 | $50.38 | Shop at ECS Tuning | ||||
| 03 | Bracket | 1 | 18307521388 | $17.63 | Shop at ECS Tuning | |||||
| 04 | Rubber Mounting | 1 | 18207578238 | $16.30 | Shop at ECS Tuning | |||||
| 05 | Collar nut | M8-8-SC-ZNNIV | 4 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 06 | Bracket | 1 | 18307525633 | $11.66 | Shop at ECS Tuning | |||||
| 07 | Rubber Mounting | 1 | 18307802829 | $37.32 | Shop at ECS Tuning | |||||
| 08 | Rubber Ring | 1 | 18207578239 | $21.41 | +core | Shop at ECS Tuning | ||||
| 09 | Bracket | 1 | 18207535415 | Shop at ECS Tuning | ||||||
| 10 | Tailpipe tip, chrome | 1 | 18307535418 | Shop at ECS Tuning |
