Exhaust manifold with catalyst for BMW 5 Series E60 LCI 520i (2008)

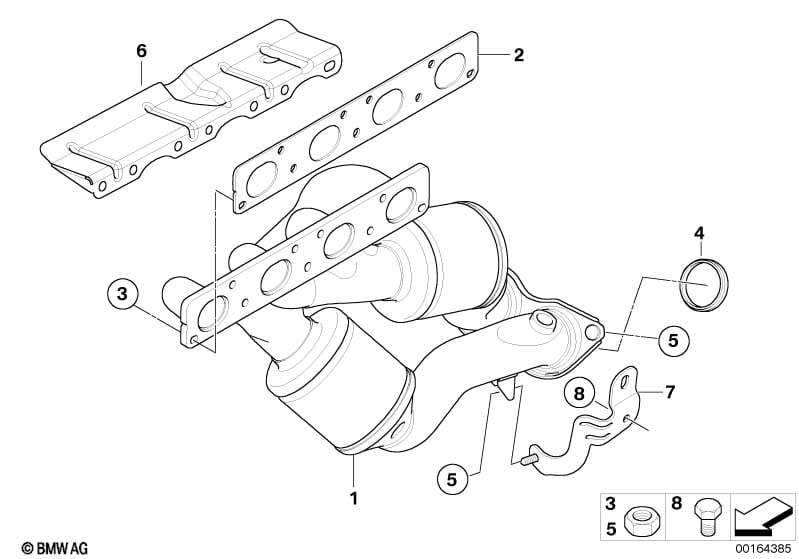

This Exhaust manifold with catalyst technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP exhaust manifold with catalytic conv | 1 | 18407571490 | ENDED | Shop at ECS Tuning | |||||
| 02 | Flat gasket | 1 | 18307540797 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Hex nut | 9 | 11721437202 | $0.72 | Shop at ECS Tuning | |||||
| 03 | Hex nut | 9 | 11721437202 | $0.72 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea |
L802A=Yes |
|||||||||
| 03 | Hex nut | 11 | 11721437202 | $0.72 | Shop at ECS Tuning | |||||
| 04 | Gasket ring | 2 | 18307571894 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Hex nut wiht flange | M8 | 4 | 18307620549 | Shop at ECS Tuning | |||||
| 05 | Hex nut wiht flange | M8 | 4 | 18307620549 | Shop at ECS Tuning | |||||
| 06 | Heat resistant plate | 1 | 18407547849 | Shop at ECS Tuning | ||||||
| 07 | Holder | 1 | 18207571501 | Shop at ECS Tuning | ||||||
| 08 | ASA-Bolt | M8X20-U1-8.8 | 2 | 07129904559 | $0.71 | Shop at ECS Tuning | ||||
