Lambda Probe Fixings for BMW 5 Series E60 LCI 520i (2008)

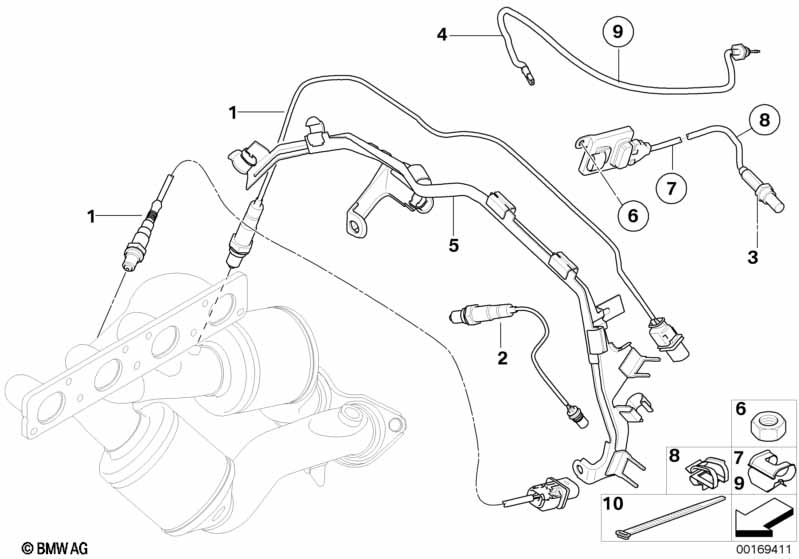

This Lambda Probe Fixings technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Regulating lambda probe | L= 890MM | 2 | 11787573319 | Shop at ECS Tuning | |||||
| 02 | Lambda Monitor sensor | L= 780MM | 1 | 11787573320 | Shop at ECS Tuning | |||||
| 03 | NOX sensor | 1 | 11787587129 | $502.25 | Shop at ECS Tuning | |||||
| 04 | Temperature sensor, exhaust | L=500 | 1 | 11787567908 | Shop at ECS Tuning | |||||
| 05 | Holder | 1 | 11787567628 | ENDED, +core | Shop at ECS Tuning | |||||
| 06 | Plastic nut | 2 | 11787572579 | Shop at ECS Tuning | ||||||
| 07 | Cable clamp | 17,4X9,9 | 1 | 11787567189 | Shop at ECS Tuning | |||||
| 08 | Clip | 2 | 12521437136 | $0.63 | Shop at ECS Tuning | |||||
| 09 | Cable holder | 3 | 07146976165 | $0.66 | Shop at ECS Tuning | |||||
| 10 | Cable tie | 1 | 12511742867 | $2.73 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
