Diesel part.filter sens./mounting parts for BMW 5 Series E60 535d (2005)

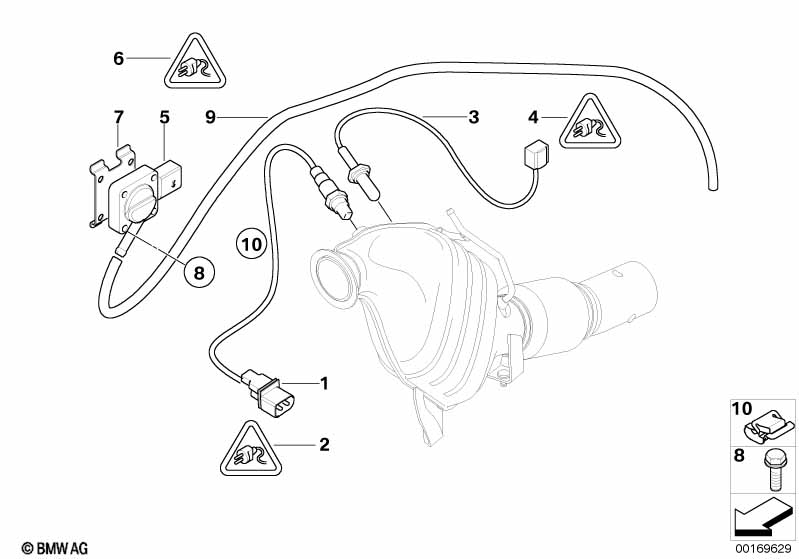

This Diesel part.filter sens./mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 535d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oxygen sensor | L=640MM | 1 | 13627794634 | $181.12 | Shop at ECS Tuning | ||||
| 03 | Temperature sensor | L=340 | 1 | 13627809155 | Shop at ECS Tuning | |||||
| 05 | Pressure sensor | 1 | 13627789219 | $163.45 | Shop at ECS Tuning | |||||
| 06 | Plug housing | 3 POL. | 1 | 12527508154 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA | 0,22-0,35MM² AG | 1 | 12521427612 | $0.50 | SI 2 02 05(194) | Shop at ECS Tuning | |||
| 07 | Exhaust pressure sensor bracket | 1 | 13627792814 | ENDED | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M6X18-U1 | 2 | 07119905399 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Hose | 1 | 13627799109 | Shop at ECS Tuning | ||||||
| 10 | Cable holder | 1 | 05/2006 | 07146976165 | $0.66 | Shop at ECS Tuning | ||||
Notes
- SI = Service Information
- ENDED = the part has been discontinued (no longer available).
