Diesel part.filter sens./mounting parts for BMW 3 Series E91 330d (2008)

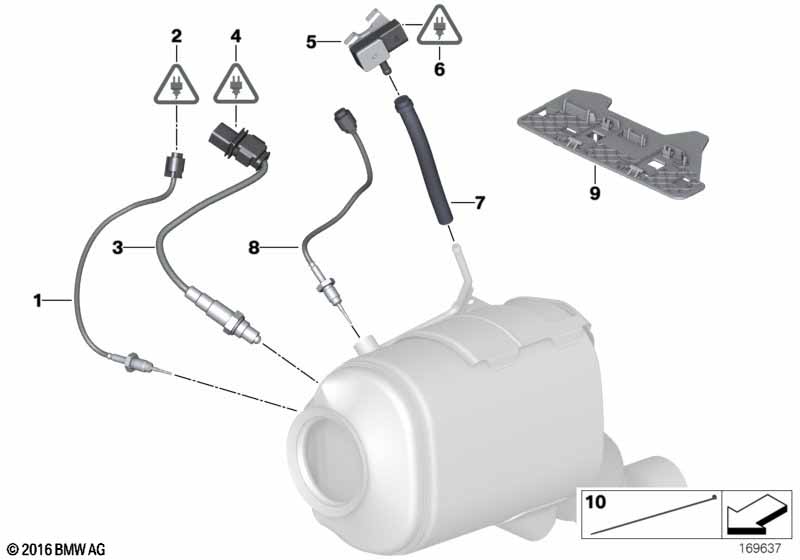

This Diesel part.filter sens./mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with EU3 exhaust emissions standard |
S169A=No |
|||||||||
| 01 | Temperature sensor | L=240 | 1 | 13627809153 | Shop at ECS Tuning | |||||
| 02 | Universal pin terminal uncoded | 2 POL. | 1 | 61138366275 | $6.90 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Pin contact MQS ELA with cable | 0,2- 0,5MM² | 2 | 61130005200 | $2.00 | Shop at ECS Tuning | ||||
| -- | Pin contact MQS ELA with cable | 0,75 QMM | 2 | 61130006666 | $2.15 | Shop at ECS Tuning | ||||
| 03 | Oxygen sensor | L=380MM | 1 | 13627791600 | Shop at ECS Tuning | |||||
| 04 | Universal socket housing MLK uncoded | 6 POL. /MLK 1.2 | 1 | 12527505669 | $5.73 | Shop at ECS Tuning | ||||
| For vehicles with EU3 exhaust emissions standard |
S169A=No |
|||||||||
| 05 | Pressure sensor | 1 | 13627789219 | $163.45 | Shop at ECS Tuning | |||||
| 06 | Plug housing | 3 POL. | 1 | 12527508154 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA | 0,22-0,35MM² AG | 1 | 12521427612 | $0.50 | SI 2 02 05(194) | Shop at ECS Tuning | |||
| For vehicles with EU3 exhaust emissions standard |
S169A=No |
|||||||||
| 07 | Hose | 1 | 13627801744 | Shop at ECS Tuning | ||||||
| 08 | Temperature sensor | L=110 | 1 | 13627809157 | Shop at ECS Tuning | |||||
| 09 | Supporting plate | MIT HITZESCHUTZ | 1 | 09/2006 | 12517799471 | Shop at ECS Tuning | ||||
| For vehicles with EU3 exhaust emissions standard |
S169A=No |
|||||||||
| 10 | Cable tie | 1 | 12511742867 | $2.73 | Shop at ECS Tuning | |||||
