Exhaust system, rear for BMW 7 Series F02 LCI 730Li (2015)

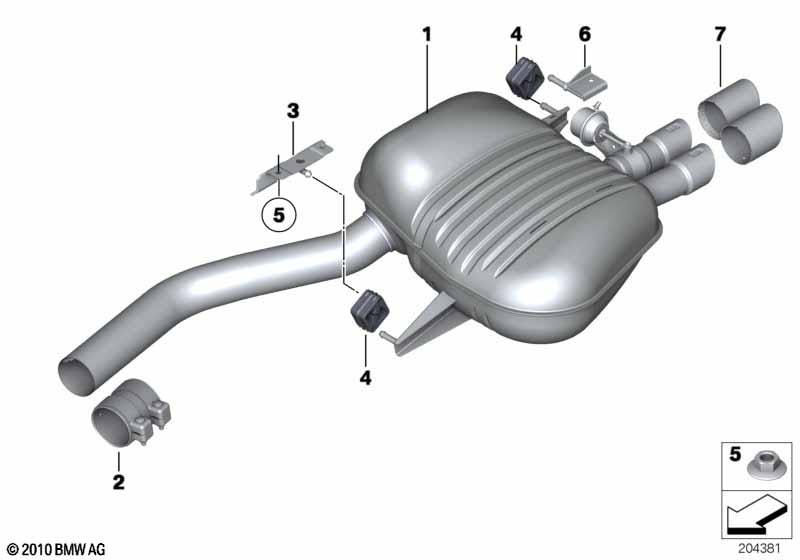

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 730Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear muffler with exhaust flap | 1 | 18307646918 | Shop at ECS Tuning | ||||||
| 02 | Clamping bush | D=75 X 90MM | 1 | 18307560781 | $152.42 | Shop at ECS Tuning | ||||
| 03 | Torx screw with collar | M8X55 | 1 | 10/2010 | 18307591467 | Shop at ECS Tuning | ||||
| 04 | Rubber Ring | 2 | 18207585358 | Shop at ECS Tuning | ||||||
| 05 | Collar nut | M8-8-SC-ZNNIV | 1 | 10/2010 | 07119906089 | $0.32 | Shop at ECS Tuning | |||
| 06 | Bracket, resonator, rear left | 1 | 18207578229 | $18.80 | Shop at ECS Tuning | |||||

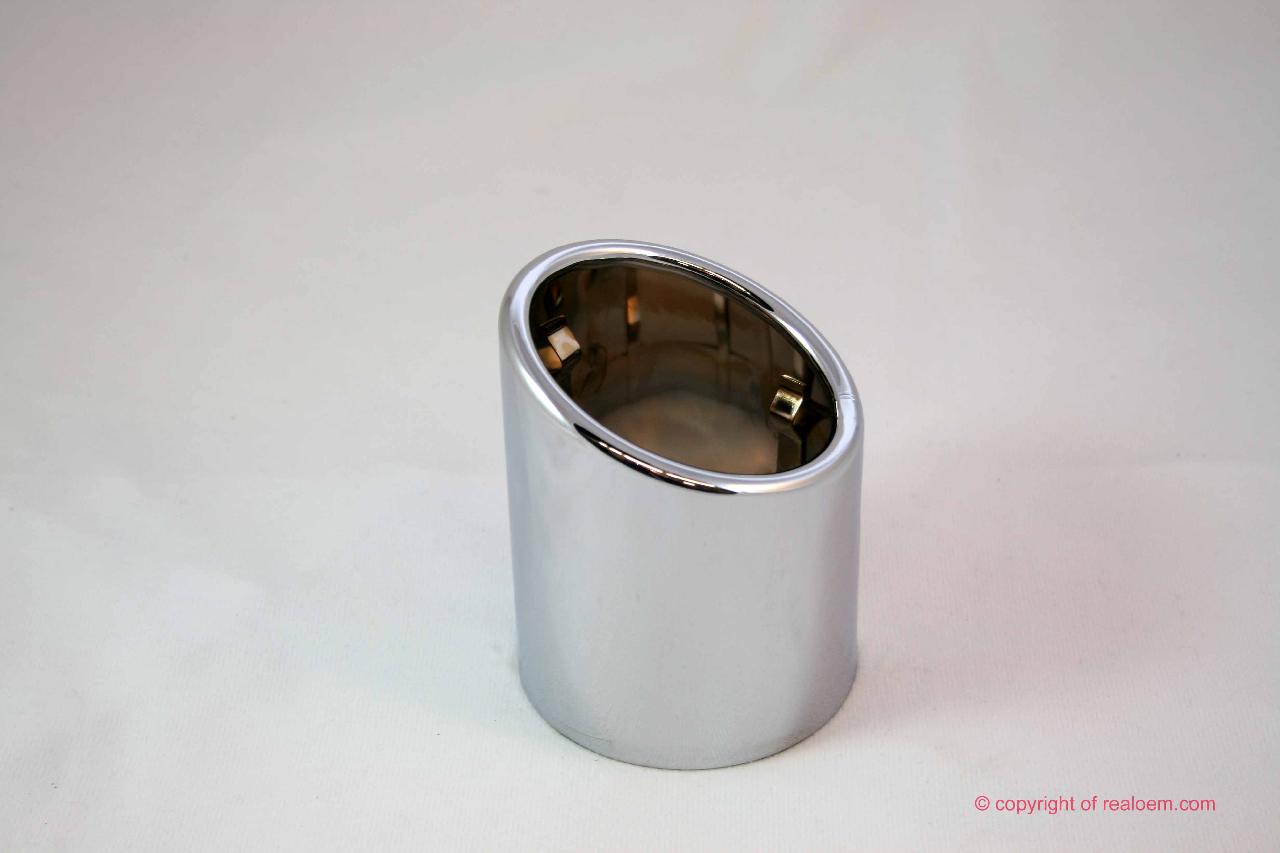

| 07 | Tailpipe tip, chrome | 2 | 18307536038 | $60.00 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series F02 LCI 730Li Exhaust system, rear?
- This technical diagram illustrates the Exhaust system, rear within the Exhaust system group for the 7 Series F02 LCI 730Li produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the Rear muffler with exhaust flap (Part #18307646918).
- Which models use the hardware listed in this Exhaust system, rear?
- The hardware and components featured in the Exhaust system, rear are specific to the 7 Series F02 LCI 730Li produced during 2015. These technical specifications ensure that parts like the Rear muffler with exhaust flap (18307646918) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Exhaust system, rear assembly?
- Each item in the Exhaust system, rear corresponds to the numbered list below the illustration. For the 7 Series F02 LCI 730Li, you can identify the Rear muffler with exhaust flap by locating its position on the schematic, which then links to the official BMW part number 18307646918 for the Exhaust system section.
