Exhaust system, rear for BMW 6 Series F13 LCI 640d (2017)

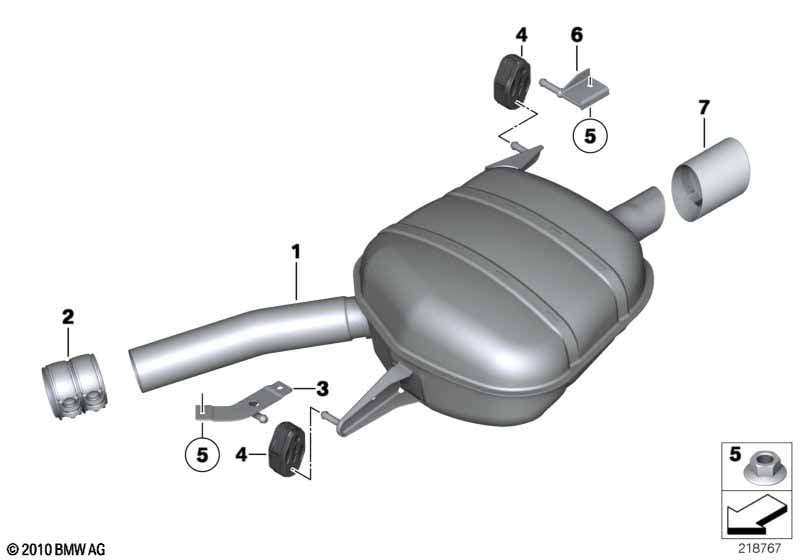

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 6 Series F13 LCI 640d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear muffler left | 1 | 18308510373 | Shop at ECS Tuning | ||||||
| 01 | Rear muffler right | 1 | 18308510374 | Shop at ECS Tuning | ||||||
| 02 | Clamping bush | D=65 X 70MM | 2 | 18307536426 | $50.38 | Shop at ECS Tuning | ||||
| 03 | Torx screw with collar | M8X55 | 2 | 18307591467 | Shop at ECS Tuning | |||||
| 04 | Rubber Mounting | 4 | 18208513515 | Shop at ECS Tuning | ||||||
| 05 | Hex nut | M8-ZNS3 | 2 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| 06 | REAR SILENCER BRACKET, rear | 2 | 18307812409 | Shop at ECS Tuning | ||||||
| 07 | Tailpipe tip, chrome | 2 | 18308626907 | Shop at ECS Tuning | ||||||
| For vehicles with M Sports package and Design pure experience |
P337A=Yes P7RXA=Yes |
|||||||||
| 07 | Tailpipe tip, black chrome | 2 | 18308626909 | Shop at ECS Tuning | ||||||
| For vehicles with M Sports package and Design pure experience |
P337A=Yes P7RXA=No |
|||||||||
| 07 | Tailpipe tip, black chrome | 2 | 18308626909 | Shop at ECS Tuning | ||||||
| For vehicles with M Sports package and Design pure experience |
P337A=No P7RXA=Yes |
|||||||||
| 07 | Tailpipe tip, black chrome | 2 | 18308626909 | Shop at ECS Tuning | ||||||
