Lambda Probe Fixings for BMW MINI Clubman R55 LCI One (2014)

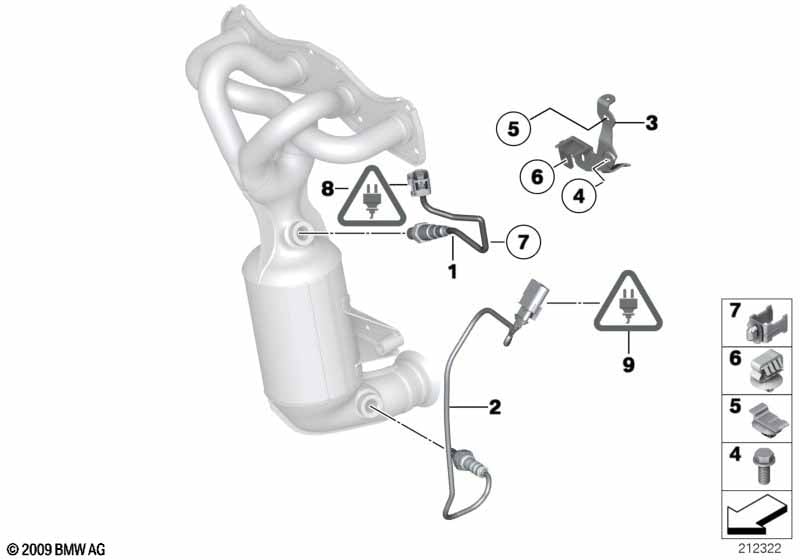

This Lambda Probe Fixings technical drawing provides a detailed breakdown of the assembly for the MINI Clubman R55 LCI One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2014.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Regulating lambda probe | L= 320MM | 1 | 11787595353 | Shop at ECS Tuning | |||||
| 02 | Lambda Monitor sensor | L=475MM | 1 | 11787548961 | $215.65 | Shop at ECS Tuning | ||||
| 03 | Lambda-probe bracket | 1 | 11787566136 | $11.35 | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M6X12-U1-8.8 | 1 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Clip | 1 | 07147544063 | $0.49 | Shop at ECS Tuning | |||||
| 06 | Cable clip | 1 | 07147543533 | $0.17 | Shop at ECS Tuning | |||||
| 07 | Cable clip | 1 | 11787595566 | Shop at ECS Tuning |
