Exhaust manifold with catalyst for BMW 5 Series F18 523Li (2012)

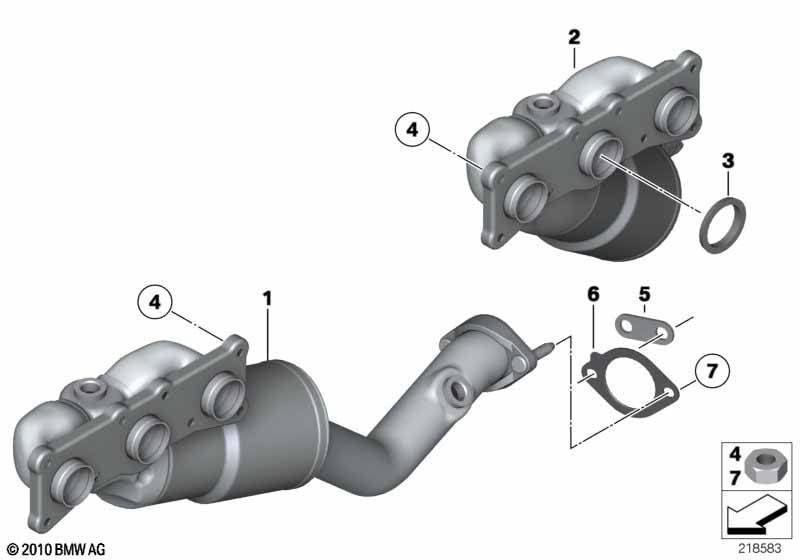

This Exhaust manifold with catalyst technical drawing provides a detailed breakdown of the assembly for the 5 Series F18 523Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 01 | RP exhaust manifold with catalytic conv | ZYL. 1-3 | 1 | 18407646689 | Shop at ECS Tuning | |||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 01 | RP exhaust manifold with catalytic conv | ZYL. 1-3 | 1 | 18400002884 | Shop at ECS Tuning | |||||
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 02 | RP exhaust manifold with catalytic conv | ZYL. 4-6 | 1 | 18407646688 | Shop at ECS Tuning | |||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 02 | RP exhaust manifold with catalytic conv | ZYL. 4-6 | 1 | 18400002885 | Shop at ECS Tuning | |||||
| 03 | Gasket ring | 6 | 18407530606 | $5.93 | Shop at ECS Tuning | |||||
| 04 | Hex nut | 16 | 11721437202 | $0.72 | Shop at ECS Tuning | |||||
| 05 | Connection plate | 1 | 18207578220 | Shop at ECS Tuning | ||||||
| 06 | Flat gasket | 2 | 18107549447 | $14.36 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex nut | M10 | 4 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M10 | 4 | 18307530972 | $1.65 | Shop at ECS Tuning | ||||
