Exhaust pipe front silencer for BMW 7 Series E32 730i (1994)

Sign In
Sign Out
Account

Donate Go Ad Free

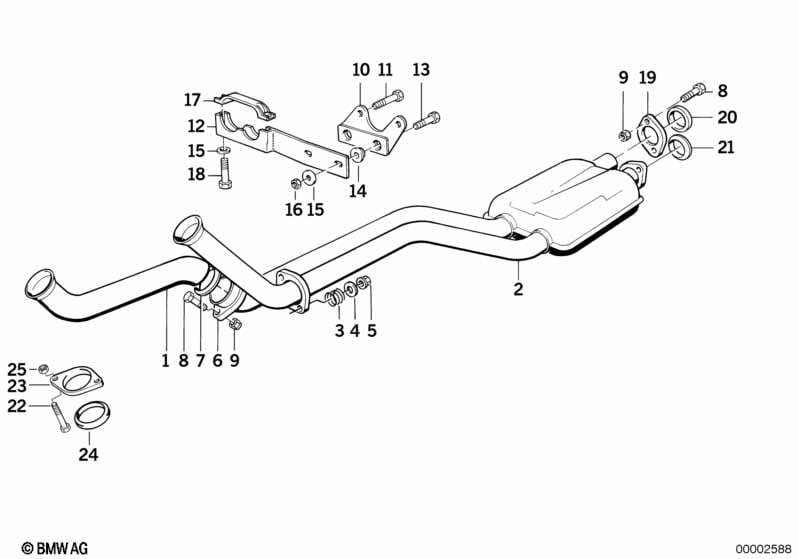

This Exhaust pipe front silencer technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.

No.	Description	Supp.	Qty	From	Part Number	Price	Notes
i	CATALYZER PREPARATION CONVENTIONAL EXHAUST TECHNIQUE
01	Exhaust pipe	ZYL.1-3	1		18111709462	$97.37		Shop at ECS Tuning
02	Exhaust pipe front silencer		1	09/1988	18101712611	$319.18		Shop at ECS Tuning
	only in conjunction with
--	Exhaust pipe	ZYL.1-3	1	09/1988	18111709462	$97.37		Shop at ECS Tuning
03	Compression spring		4		11761716668	$5.81		Shop at ECS Tuning
	only applies to
--	Pipe clamp		X		18211175021	$13.17		Shop at ECS Tuning
--	Pipe clamp		X		18211175787	$11.57		Shop at ECS Tuning
--	Hex bolt	M8X50	X		07119912516	$0.55	ENDED	Shop at ECS Tuning
04	Washer		4		11621716346	$0.37		Shop at ECS Tuning
	only applies to
--	Pipe clamp		X		18211175021	$13.17		Shop at ECS Tuning
--	Pipe clamp		X		18211175787	$11.57		Shop at ECS Tuning
--	Hex bolt	M8X50	X		07119912516	$0.55	ENDED	Shop at ECS Tuning
05	Hex nut wiht flange	M8	4		18307620549			Shop at ECS Tuning
06	Flange		1		18111712070	$15.61		Shop at ECS Tuning
	only applies to
--	Pipe clamp		X		18211175021	$13.17		Shop at ECS Tuning
--	Pipe clamp		X		18211175787	$11.57		Shop at ECS Tuning
--	Hex bolt	M8X50	X		07119912516	$0.55	ENDED	Shop at ECS Tuning
07	Gasket ring	50MM	1		18111723532			Shop at ECS Tuning
	only applies to
--	Pipe clamp		X		18211175021	$13.17		Shop at ECS Tuning
--	Pipe clamp		X		18211175787	$11.57		Shop at ECS Tuning
--	Hex bolt	M8X50	X		07119912516	$0.55	ENDED	Shop at ECS Tuning
08	Hex bolt	M8X55-8.8	6		07119902957	$5.27		Shop at ECS Tuning
09	Hex nut wiht flange	M8	6		18307620549			Shop at ECS Tuning
10	Holder		1		18211709245	$5.61		Shop at ECS Tuning
	only applies to
--	Pipe clamp		X		18211175021	$13.17		Shop at ECS Tuning
--	Pipe clamp		X		18211175787	$11.57		Shop at ECS Tuning
--	Hex bolt	M8X50	X		07119912516	$0.55	ENDED	Shop at ECS Tuning
11	Hex bolt	M8X20-ZNNIV SI	2		07119903039			Shop at ECS Tuning
12	Exhaust support		1		18211709243	$15.68		Shop at ECS Tuning
	only applies to
--	Pipe clamp		X		18211175021	$13.17		Shop at ECS Tuning
--	Pipe clamp		X		18211175787	$11.57		Shop at ECS Tuning
--	Hex bolt	M8X50	X		07119912516	$0.55	ENDED	Shop at ECS Tuning
13	Hex bolt	M8X35	2		07119913676	$0.36		Shop at ECS Tuning
	only applies to
--	Pipe clamp		X		18211175021	$13.17		Shop at ECS Tuning
--	Pipe clamp		X		18211175787	$11.57		Shop at ECS Tuning
--	Hex bolt	M8X50	X		07119912516	$0.55	ENDED	Shop at ECS Tuning
14	Joint sleeve	D=8MM	4		18207546579	$2.86		Shop at ECS Tuning
	only applies to
--	Pipe clamp		X		18211175021	$13.17		Shop at ECS Tuning
--	Pipe clamp		X		18211175787	$11.57		Shop at ECS Tuning
--	Hex bolt	M8X50	X		07119912516	$0.55	ENDED	Shop at ECS Tuning
15	Washer	A8,4	4		33311108205	$0.16		Shop at ECS Tuning
	only applies to
--	Pipe clamp		X		18211175021	$13.17		Shop at ECS Tuning
--	Pipe clamp		X		18211175787	$11.57		Shop at ECS Tuning
--	Hex bolt	M8X50	X		07119912516	$0.55	ENDED	Shop at ECS Tuning
16	Hex nut	M8-8-ZNNIV SI	2		07119905515	$0.16		Shop at ECS Tuning
17	Clamp		1		18211707978	$8.40		Shop at ECS Tuning
	only applies to
--	Pipe clamp		X		18211175021	$13.17		Shop at ECS Tuning
--	Pipe clamp		X		18211175787	$11.57		Shop at ECS Tuning
--	Hex bolt	M8X50	X		07119912516	$0.55	ENDED	Shop at ECS Tuning
18	Hex bolt	M8X50	2		07119904533	$2.84		Shop at ECS Tuning
	only applies to
--	Pipe clamp		X		18211175021	$13.17		Shop at ECS Tuning
--	Pipe clamp		X		18211175787	$11.57		Shop at ECS Tuning
--	Hex bolt	M8X50	X		07119912516	$0.55	ENDED	Shop at ECS Tuning
19	Flange		1		18111712070	$15.61		Shop at ECS Tuning
	only applies to
--	Pipe clamp		X		18211175021	$13.17		Shop at ECS Tuning
--	Pipe clamp		X		18211175787	$11.57		Shop at ECS Tuning
--	Hex bolt	M8X50	X		07119912516	$0.55	ENDED	Shop at ECS Tuning
20	Gasket ring	50MM	1		18111723532			Shop at ECS Tuning
	only applies to
--	Pipe clamp		X		18211175021	$13.17		Shop at ECS Tuning
--	Pipe clamp		X		18211175787	$11.57		Shop at ECS Tuning
--	Hex bolt	M8X50	X		07119912516	$0.55	ENDED	Shop at ECS Tuning
21	Gasket ring	47MM	1		18111175311	$8.37		Shop at ECS Tuning
	only applies to
--	Pipe clamp		X		18211175021	$13.17		Shop at ECS Tuning
--	Pipe clamp		X		18211175787	$11.57		Shop at ECS Tuning
--	Hex bolt	M8X50	X		07119912516	$0.55	ENDED	Shop at ECS Tuning
22	Hex bolt	M8X55-8.8	2		07119902957	$5.27		Shop at ECS Tuning
23	Flange		1		18111712070	$15.61		Shop at ECS Tuning
	only applies to
--	Pipe clamp		X		18211175021	$13.17		Shop at ECS Tuning
--	Pipe clamp		X		18211175787	$11.57		Shop at ECS Tuning
--	Hex bolt	M8X50	X		07119912516	$0.55	ENDED	Shop at ECS Tuning
24	Gasket ring	50MM	1		18111723532			Shop at ECS Tuning
	only applies to
--	Pipe clamp		X		18211175021	$13.17		Shop at ECS Tuning
--	Pipe clamp		X		18211175787	$11.57		Shop at ECS Tuning
--	Hex bolt	M8X50	X		07119912516	$0.55	ENDED	Shop at ECS Tuning
25	Hex nut wiht flange	M8	2		18307620549			Shop at ECS Tuning

Notes

ENDED = the part has been discontinued (no longer available).
